hCYP3A4 Fluorogenic Substratum 1 is a potent form of hCYP3A4 fluid.Having a Km value of 0.36 μM.Imaging in cells and in vivo is possible with hCYP3A4 Fluorogenic Substratum 1.

Physicochemical Properties

Molecular Formula	C19H12NO2F
Molecular Weight	305.302
Exact Mass	305.085
CAS #	186299-00-3
PubChem CID	10614509
Appearance	White to off-white solid powder
LogP	3.7
Hydrogen Bond Donor Count	0
Hydrogen Bond Acceptor Count	3
Rotatable Bond Count	2
Heavy Atom Count	23
Complexity	456
Defined Atom Stereocenter Count	0
SMILES	FC1=CC=C(CN2C(=O)C3=CC=CC4=C3C(=CC=C4)C2=O)C=C1
InChi Key	JVHUQBLLHSIOMR-UHFFFAOYSA-N
InChi Code	InChI=1S/C19H12FNO2/c20-14-9-7-12(8-10-14)11-21-18(22)15-5-1-3-13-4-2-6-16(17(13)15)19(21)23/h1-10H,11H2

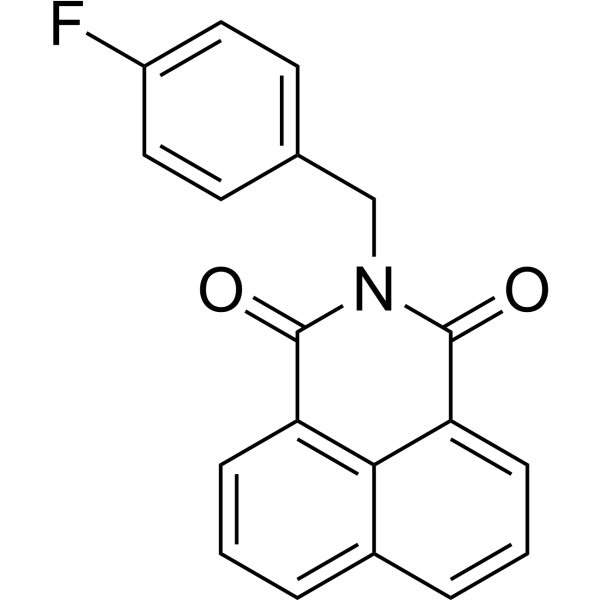

Chemical Name	2-[(4-fluorophenyl)methyl]benzo[de]isoquinoline-1,3-dione
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month

Biological Activity

Targets	CYP3A4 (Km=0.36 μM)
ln Vitro	In the green channel of living Hep3B2 and Huh-7 cells, hCYP3A4 Fluorogenic substrate 1 (compound F8) (20 μM; 30 min) exhibits a brilliant fluorescent signal [1].
ln Vivo	For in vivo imaging, hCYP3A4 Fluorogenic Substrat 1 (10 mg/kg; IV) can be utilized [1].
Animal Protocol	Animal/Disease Models: Male SD (Sprague-Dawley) rats[1] Doses: 10 mg/kg Route of Administration: Iv Experimental Results: Can be used as a probe substrate offers a highly efficient and easy-to-use approach for screening and characterizing hCYP3A4 inhibitors or time-dependent inactivators, which strongly facilitates hCYP3A4-mediated DDI studies.
References	[1]. Rationally Engineered CYP3A4 Fluorogenic Substrates for Functional Imaging Analysis and Drug-Drug Interaction Studies. J Med Chem. 2023 May 25;66(10):6743-6755.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	3.2755 mL	16.3773 mL	32.7547 mL
	5 mM	0.6551 mL	3.2755 mL	6.5509 mL
	10 mM	0.3275 mL	1.6377 mL	3.2755 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
