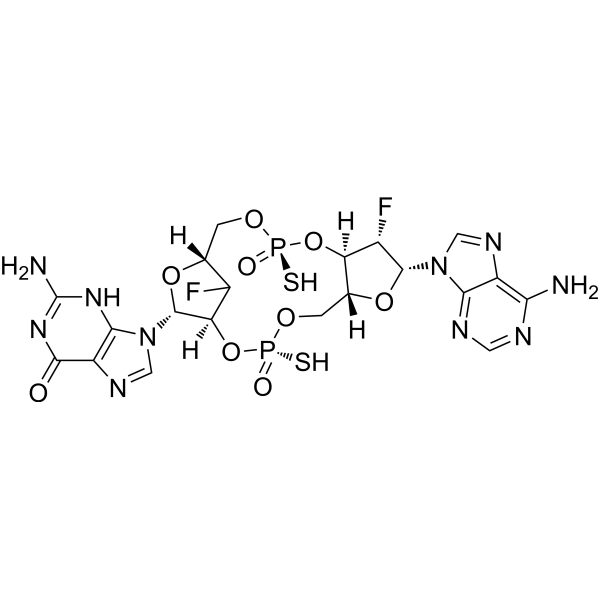

Ulevostinag isomer 4 (MK-1454 isomer 4) is an isomer of Ulevostinag. Ulevostinag is a STING agonist.

Physicochemical Properties

Molecular Formula	C20H22F2N10O9P2S2
Molecular Weight	710.52
Exact Mass	710.0456
Elemental Analysis	C, 33.81; H, 3.12; F, 5.35; N, 19.71; O, 20.27; P, 8.72; S, 9.02
CAS #	2082743-97-1
Appearance	Typically exists as solid at room temperature
LogP	-1.2
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	STING
References	[1].Current status of intralesional agents in treatment of malignant melanoma. Ann Transl Med. 2021 Jun;9(12):1038.
Additional Infomation	Prognosis of metastatic melanoma has undergone substantial improvement with the discovery of checkpoint inhibitors. Immunotherapies and targeted therapies have improved the median overall survival (OS) of metastatic melanoma from 6 months to more than 3 years. However, still about half of the patients die due to uncontrolled disease. Therefore, multiple strategies are currently being investigated to improve outcomes. One such strategy is intralesional/intratumoral (IT) therapies which can either directly kill the tumor cells or make the tumor more immunogenic to be recognized by the immune system. Talimogene laherparepvec (T-VEC), an oncolytic virus, is the first FDA approved IT therapy. This review focuses on the current status of IT agents currently under clinical trials in melanoma. Reviewed therapies include T-VEC, T-VEC with immune checkpoint inhibitors including ipilimumab and pembrolizumab or other agents, RP1, OrienX010, Canerpaturev (C-REV, HF10), CAVATAK (coxsackievirus A21, CVA21) alone or in combination with checkpoint inhibitors, oncolytic polio/rhinovirus recombinant (PVSRIPO), MAGE-A3-expressing MG1 Maraba virus, VSV-IFNbetaTYRP1, suicide gene therapy, ONCOS-102, OBP-301 (Telomelysin), Stimulation of Interferon Genes Pathway (STING agonists) including DMXAA, MIW815 (ADU-S100) and MK-1454, PV-10, toll-like receptors (TLRs) agonists including TLR-9 agonists (SD-101, CMP-001, IMO-2125 or tilsotolimod, AST-008 or cavrotolimod, MGN1703 or lefitolimod), CV8102, NKTR-262 plus NKTR-214, LHC165, G100, intralesional interleukin-2, Daromun (L19IL2 plus L19TNF), Hiltonol (poly-ICLC), electroporation including calcium electroporation and plasmid interleukin-12 electroporation (pIL-12 EP), IT ipilimumab, INT230-6 (cisplatin and vinblastine with an amphiphilic penetration enhancer), TTI-621 (SIRPαFc), CD-40 agonistic antibodies (ABBV-927 and APX005M), antimicrobial peptide LL37 and other miscellaneous agents. [1]

Solubility Data

Solubility (In Vitro)

Typically soluble in DMSO (e.g. 10 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.4074 mL	7.0371 mL	14.0742 mL
	5 mM	0.2815 mL	1.4074 mL	2.8148 mL
	10 mM	0.1407 mL	0.7037 mL	1.4074 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
