Physicochemical Properties
| Molecular Formula | C21H27NO5 |
| Molecular Weight | 373.45 |
| Exact Mass | 373.188 |
| Elemental Analysis | C, 67.54; H, 7.29; N, 3.75; O, 21.42 |
| CAS # | 377731-45-8 |
| PubChem CID | 9947731 |
| Appearance | Typically exists as solid at room temperature |
| Density | 1.151±0.06 g/cm3(Predicted) |
| Boiling Point | 544.8±60.0 °C(Predicted) |
| LogP | 4 |
| Hydrogen Bond Donor Count | 1 |
| Hydrogen Bond Acceptor Count | 6 |
| Rotatable Bond Count | 7 |
| Heavy Atom Count | 27 |
| Complexity | 483 |
| Defined Atom Stereocenter Count | 0 |

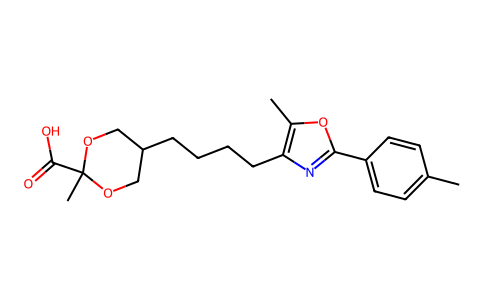

| SMILES | O1C(C(=O)O)(C)OCC(C1)CCCCC1=C(C)OC(C2C=CC(C)=CC=2)=N1 |
| InChi Key | IMYPSTHZBIWMNA-UHFFFAOYSA-N |
| InChi Code | InChI=1S/C21H27NO5/c1-14-8-10-17(11-9-14)19-22-18(15(2)27-19)7-5-4-6-16-12-25-21(3,20(23)24)26-13-16/h8-11,16H,4-7,12-13H2,1-3H3,(H,23,24) |
| Chemical Name | 2-methyl-5-[4-[5-methyl-2-(4-methylphenyl)-1,3-oxazol-4-yl]butyl]-1,3-dioxane-2-carboxylic acid |
| Synonyms | NS220; NS 220; CHEMBL270960; 377731-45-8; LS-191458; GTPL2678; SCHEMBL1771340; SCHEMBL5856065; BDBM50225835; NS-220 |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| Targets | PPARα(EC50 = 19 nM); PPARγ(EC50 = 9.6 μM); PPARδ(EC50 >1 mM) |
| ln Vitro | 2-Methyl-c-5-[4-[5-methyl-2-(4-methylphenyl)-4-oxazolyl]butyl]-1,3-dioxane-r-2-carboxylic acid (NS-220) was newly synthesized and demonstrated to be a novel potent peroxisome proliferator-activated receptor alpha (PPARalpha) agonist with high subtype selectivity. In cell-based reporter gene assays, the EC(50) values of NS-220 for human PPARalpha, PPARgamma, and PPARdelta were 1.9 x 10(-8), 9.6 x 10(-6), and >10(-4) M, respectively, and for mouse PPARalpha, PPARgamma, and PPARdelta were 5.5 x 10(-8), 3.3 x 10(-5), and >10(-4) M, respectively. In addition, [(3)H]NS-220 bound to the ligand-binding domain of human PPARalpha with a K(D) value of 1.85 x 10(-7) M. Fenofibric acid and bezafibrate showed weak agonist activity for PPARalpha (EC(50), 2-8 x 10(-5) M), with poor subtype selectivity[1]. |
| ln Vivo | NS-220 (0.1-3 mg/kg p.o.) decreased plasma triglyceride levels in ddY mice in a dose-dependent manner, but its hypolipidemic activity was abolished in PPARalpha-deficient mice. In KK-A(y) mice, an animal model of type-2 diabetes, NS-220 (0.3-1 mg/kg p.o.; 4 days) and fenofibrate (100-300 mg/kg p.o.; 4 days) decreased plasma triglyceride and glucose levels in a dose-dependent manner. In a 2-week repeated administration test, NS-220 (0.3-1 mg/kg p.o.) decreased plasma glucose levels markedly without increasing in plasma insulin levels. Furthermore, NS-220 increased high-density lipoprotein levels and decreased triglyceride-rich lipoprotein levels. In conclusion, a newly synthesized dioxanecarboxylic acid derivative, NS-220, is a potent and highly selective PPARalpha agonist that ameliorates metabolic disorders in diabetic mice. These results strongly suggest that it will be a promising drug for the treatment of hyperlipidemia or metabolic disorders in type-2 diabetes[2]. |
| References |
[1]. A novel selective peroxisome proliferator-activated receptor alpha agonist, 2-methyl-c-5-[4-[5-methyl-2-(4-methylphenyl)-4-oxazolyl]butyl]-1,3-dioxane-r-2-carboxylic acid (NS-220), potently decreases plasma triglyceride and glucose levels and modifies lipoprotein profiles in KK-Ay mice. J Pharmacol Exp Ther. 2004 Jun;309(3):970-7. |
Solubility Data
| Solubility (In Vitro) | May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples |
| Solubility (In Vivo) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 2.6777 mL | 13.3887 mL | 26.7773 mL | |
| 5 mM | 0.5355 mL | 2.6777 mL | 5.3555 mL | |
| 10 mM | 0.2678 mL | 1.3389 mL | 2.6777 mL |
