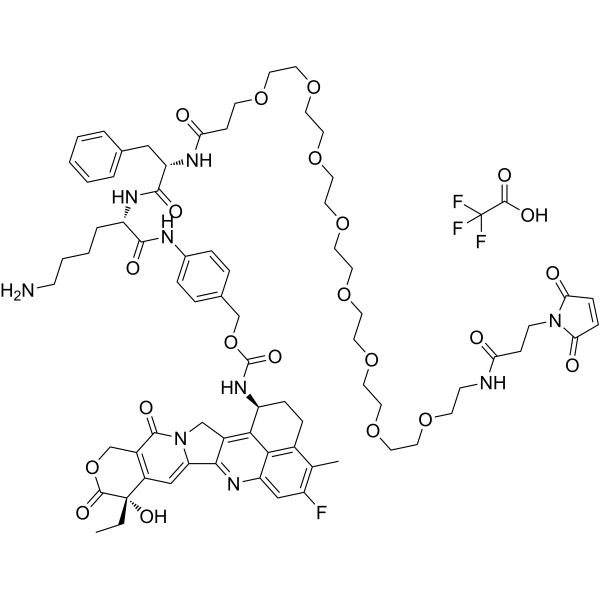

Mal-PEG8-Phe-Lys-PAB-Exatecan TFA is a bioactive molecule linker conjugate of antibody conjugated active molecule (ADC) (drug-linker conjugate for ADC), consisting of degradable linker Mal-PEG8-Phe- Lys-PAB is made up of the toxin molecule Exatecan.

Physicochemical Properties

Molecular Formula	C75H93F4N9O22
Molecular Weight	1548.58
Exact Mass	1547.6371
Related CAS #	Mal-PEG8-Phe-Lys-PAB-Exatecan;2679821-44-2
PubChem CID	168007145
Appearance	Light yellow to yellow solid powder
Hydrogen Bond Donor Count	8
Hydrogen Bond Acceptor Count	28
Rotatable Bond Count	46
Heavy Atom Count	110
Complexity	2980
Defined Atom Stereocenter Count	4
SMILES	CC[C@@]1(C2=C(COC1=O)C(=O)N3CC4=C5[C@H](CCC6=C5C(=CC(=C6C)F)N=C4C3=C2)NC(=O)OCC7=CC=C(C=C7)NC(=O)[C@H](CCCCN)NC(=O)[C@H](CC8=CC=CC=C8)NC(=O)CCOCCOCCOCCOCCOCCOCCOCCOCCNC(=O)CCN9C(=O)C=CC9=O)O.C(=O)(C(F)(F)F)O
InChi Key	NGXUGQYCKNICON-GXSKRMLUSA-N
InChi Code	InChI=1S/C73H92FN9O20.C2HF3O2/c1-3-73(93)54-42-60-67-52(44-83(60)70(90)53(54)46-102-71(73)91)66-56(17-16-51-47(2)55(74)43-58(79-67)65(51)66)81-72(92)103-45-49-12-14-50(15-13-49)77-68(88)57(11-7-8-22-75)80-69(89)59(41-48-9-5-4-6-10-48)78-62(85)21-25-94-27-29-96-31-33-98-35-37-100-39-40-101-38-36-99-34-32-97-30-28-95-26-23-76-61(84)20-24-82-63(86)18-19-64(82)87;3-2(4,5)1(6)7/h4-6,9-10,12-15,18-19,42-43,56-57,59,93H,3,7-8,11,16-17,20-41,44-46,75H2,1-2H3,(H,76,84)(H,77,88)(H,78,85)(H,80,89)(H,81,92);(H,6,7)/t56-,57-,59-,73-;/m0./s1
Chemical Name	[4-[[(2S)-6-amino-2-[[(2S)-2-[3-[2-[2-[2-[2-[2-[2-[2-[2-[3-(2,5-dioxopyrrol-1-yl)propanoylamino]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]propanoylamino]-3-phenylpropanoyl]amino]hexanoyl]amino]phenyl]methyl N-[(10S,23S)-10-ethyl-18-fluoro-10-hydroxy-19-methyl-5,9-dioxo-8-oxa-4,15-diazahexacyclo[14.7.1.02,14.04,13.06,11.020,24]tetracosa-1,6(11),12,14,16,18,20(24)-heptaen-23-yl]carbamate;2,2,2-trifluoroacetic acid
Synonyms	Mal-PEG8-Phe-Lys-PAB-Exatecan TFA; Mal-PEG8-Phe-Lys-PAB-Exatecan (TFA)
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: This product requires protection from light (avoid light exposure) during transportation and storage.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	Topoisomerase; Camptothecins
ln Vitro	Antibody drug conjugates (ADCs) carry a highly efficient small molecule toxin covalently attached to the antibody through an appropriate linker. For therapeutic ADCs in cancer treatment, antibodies target specific antigens on the surface of tumor cells with high binding affinity, and then the intact ADC is internalized into tumor cells along with the antigen and digested in lysosomes to release anti-tumor toxins [1].
References	[1]. Manel KRAIEM. Treatment of cancer. Patent WO2021151984A1.

Solubility Data

Solubility (In Vitro)

DMSO :~100 mg/mL (~64.58 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	0.6458 mL	3.2288 mL	6.4575 mL
	5 mM	0.1292 mL	0.6458 mL	1.2915 mL
	10 mM	0.0646 mL	0.3229 mL	0.6458 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
