1,4-DPCA ethyl ester is the ethyl ester form of 1,4-DPCA and can inhibit FIH.

Physicochemical Properties

Molecular Formula	C15H12N2O3
Molecular Weight	268.267
Exact Mass	268.085
CAS #	86443-19-8
PubChem CID	327508
Appearance	Off-white to light yellow solid powder
LogP	2.253
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	5
Rotatable Bond Count	3
Heavy Atom Count	20
Complexity	446
Defined Atom Stereocenter Count	0
InChi Key	YUPWGIFULUYTQG-UHFFFAOYSA-N
InChi Code	InChI=1S/C15H12N2O3/c1-2-20-15(19)11-8-17-13-10(14(11)18)6-5-9-4-3-7-16-12(9)13/h3-8H,2H2,1H3,(H,17,18)

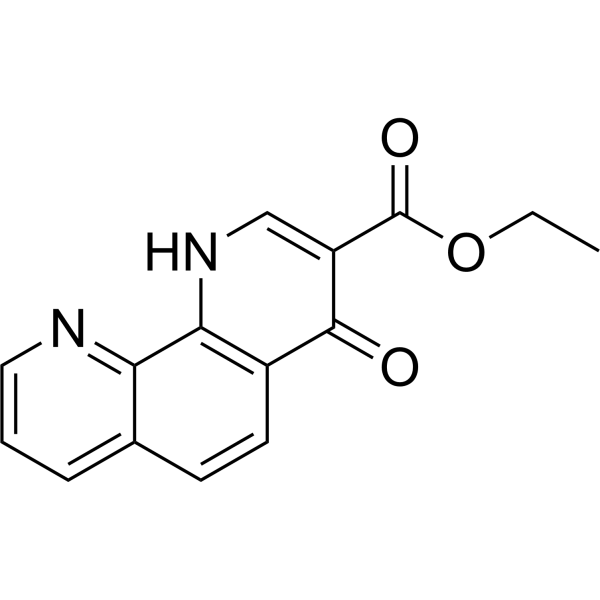

Chemical Name	ethyl 4-oxo-1H-1,10-phenanthroline-3-carboxylate
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	1,4-DPCA ethyl ester is a tricyclic substance that suppresses the regulatory factor HIF (FIH) [1].
References	[1]. The inhibition of factor inhibiting hypoxia-inducible factor (FIH) by beta-oxocarboxylic acids. Chem Commun (Camb). 2005 Nov 21;(43):5438-40.

Solubility Data

Solubility (In Vitro)

DMSO : ~20.83 mg/mL (~77.65 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.08 mg/mL (7.75 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.08 mg/mL (7.75 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	3.7276 mL	18.6379 mL	37.2759 mL
	5 mM	0.7455 mL	3.7276 mL	7.4552 mL
	10 mM	0.3728 mL	1.8638 mL	3.7276 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
