Amino-PEG2-NH-Boc is a PEG-based PROTAC (PROteolysis TArgeting Chimera) linker used to prepare PROTAC.

Physicochemical Properties

Molecular Formula	C9H20N2O3
Molecular Weight	204.2667
Exact Mass	204.147
CAS #	127828-22-2
PubChem CID	12106198
Appearance	Colorless to light yellow viscous liquid
Density	1.024g/cm3
Boiling Point	321.128ºC at 760 mmHg
Flash Point	148.013ºC
Vapour Pressure	0mmHg at 25°C
Index of Refraction	1.457
LogP	1.391
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	4
Rotatable Bond Count	7
Heavy Atom Count	14
Complexity	166
Defined Atom Stereocenter Count	0
SMILES	O(C(N([H])C([H])([H])C([H])([H])OC([H])([H])C([H])([H])N([H])[H])=O)C(C([H])([H])[H])(C([H])([H])[H])C([H])([H])[H]
InChi Key	VULKFBHOEKTQSF-UHFFFAOYSA-N
InChi Code	InChI=1S/C9H20N2O3/c1-9(2,3)14-8(12)11-5-7-13-6-4-10/h4-7,10H2,1-3H3,(H,11,12)

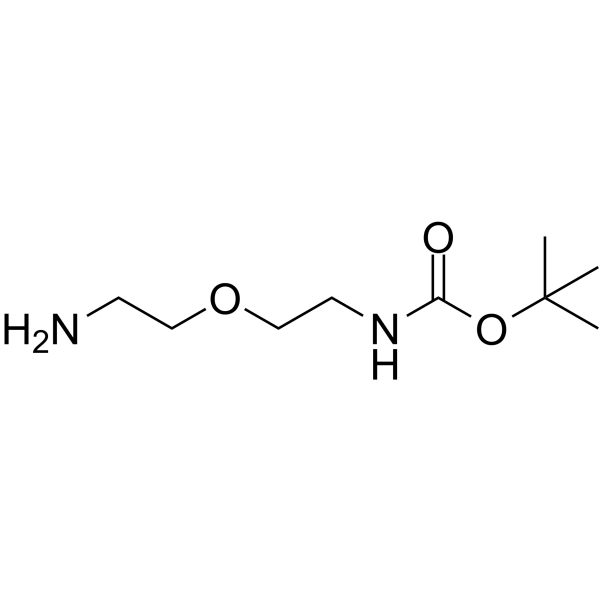

Chemical Name	tert-butyl N-[2-(2-aminoethoxy)ethyl]carbamate
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: This product requires protection from light (avoid light exposure) during transportation and storage.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	One ligand is for an E3 ubiquitin ligase, and the other is for the target protein; these two ligands are joined by a linker to form PROTACs. PROTACs target and selectively degrade target proteins by taking advantage of the intracellular ubiquitin-proteasome system.
References	[1]. Chemoselective Synthesis of Lenalidomide-Based PROTAC Library Using Alkylation Reaction. Org Lett. 2019 May 17;21(10):3838-3841.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~489.55 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (12.24 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (12.24 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (12.24 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	4.8955 mL	24.4774 mL	48.9548 mL
	5 mM	0.9791 mL	4.8955 mL	9.7910 mL
	10 mM	0.4895 mL	2.4477 mL	4.8955 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
