UAA crosslinker 1 HCl is an amber codon for the incorporation of non-canonical amino acid (AA)s (ncAAs). ncAAs can exploit the promiscuous activities of certain wild-type and engineered aminoacyl-tRNA synthetases to synthesize proteins in vivo. UAA crosslinker 1 (HCl) is a reagent for click chemistry. It has an Azide (N3) moiety and could undergo CuAAc (copper-catalyzed azide-alkyne cycloaddition reaction) with compounds bearing an Alkyne group. SPAAC (Strain-promoted alkyne-azide cycloaddition) may also happen with compounds bearing a BCN or DBCO group.

Physicochemical Properties

Molecular Formula	C9H18CLN5O4
Molecular Weight	295.723320484161
Exact Mass	295.104
CAS #	1994331-17-7
Related CAS #	UAA crosslinker 1;1167421-25-1
PubChem CID	102571564
Appearance	Off-white to light yellow solid powder
Hydrogen Bond Donor Count	4
Hydrogen Bond Acceptor Count	7
Rotatable Bond Count	10
Heavy Atom Count	19
Complexity	316
Defined Atom Stereocenter Count	1
SMILES	C(CCNC(=O)OCCN=[N+]=[N-])C[C@@H](C(=O)O)N.Cl
InChi Key	USQKPJVGUFZIJQ-FJXQXJEOSA-N
InChi Code	InChI=1S/C9H17N5O4.ClH/c10-7(8(15)16)3-1-2-4-12-9(17)18-6-5-13-14-11;/h7H,1-6,10H2,(H,12,17)(H,15,16);1H/t7-;/m0./s1

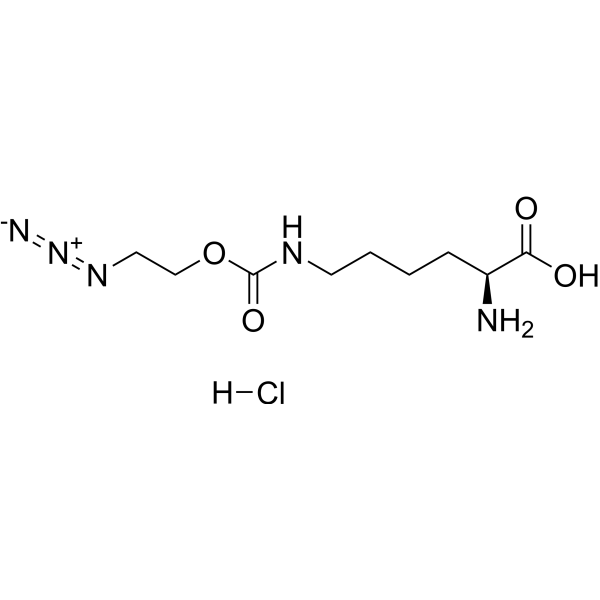

Chemical Name	(2S)-2-amino-6-(2-azidoethoxycarbonylamino)hexanoic acid;hydrochloride
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Solubility Data

Solubility (In Vitro)

DMSO : ~125 mg/mL (~422.70 mM) H2O : ~100 mg/mL (~338.16 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.08 mg/mL (7.03 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: 2.08 mg/mL (7.03 mM) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), suspension solution; with ultrasonication. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.08 mg/mL (7.03 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	3.3816 mL	16.9079 mL	33.8158 mL
	5 mM	0.6763 mL	3.3816 mL	6.7632 mL
	10 mM	0.3382 mL	1.6908 mL	3.3816 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
