SDZ 220-581 hydrochloride (SDZ220581; SDZ-220581) is a novel and competitive antagonist of NMDA glutamate receptor subtype (pKi= 7.7) with the potential to be used for Parkinson's disease.
Physicochemical Properties
| Molecular Formula | C16H18CL2NO5P |
| Molecular Weight | 406.1976 |
| Exact Mass | 405.029 |
| CAS # | 179411-93-9 |
| Related CAS # | SDZ 220-581;174575-17-8;SDZ 220-581 Ammonium salt;179411-94-0 |
| PubChem CID | 78357772 |
| Appearance | Light yellow to yellow solid powder |
| Hydrogen Bond Donor Count | 5 |
| Hydrogen Bond Acceptor Count | 6 |
| Rotatable Bond Count | 6 |
| Heavy Atom Count | 25 |
| Complexity | 485 |
| Defined Atom Stereocenter Count | 1 |
| SMILES | C1=CC=C(C(=C1)C2=CC(=CC(=C2)CP(=O)(O)O)C[C@@H](C(=O)O)N)Cl.Cl |
| InChi Key | WSYIMHDAUSNYSF-RSAXXLAASA-N |
| InChi Code | InChI=1S/C16H17ClNO5P.ClH/c17-14-4-2-1-3-13(14)12-6-10(8-15(18)16(19)20)5-11(7-12)9-24(21,22)23;/h1-7,15H,8-9,18H2,(H,19,20)(H2,21,22,23);1H/t15-;/m0./s1 |

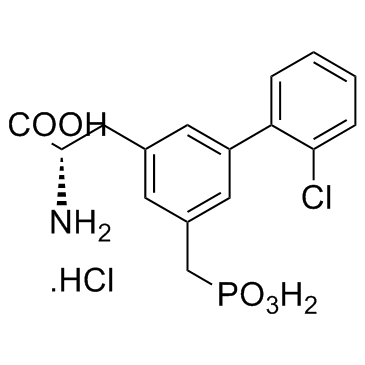

| Chemical Name | (2S)-2-amino-3-[3-(2-chlorophenyl)-5-(phosphonomethyl)phenyl]propanoic acid;hydrochloride |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture. |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| ln Vivo | Male OF-1 mice were dose-dependently protected against maximal electroshock epileptic seizures (MES) by treatment with SDZ 220-581 (3.2–32 mg/kg; p.o.; for 24 hours). The quick onset and extended duration of action of SDZ 220-581 are characteristics of its protective duration [1]. |
| Animal Protocol |
Animal/Disease Models: Male OF-1 mouse (18-26g) [1] Doses: 3.2mg/kg, 10mg/kg, 32mg/kg Route of Administration: Oral administration; Route of Administration: Oral administration. 24-hour Experimental Results: Dose-dependent protection of mice from maximal electroshockable seizures (MES) following oral administration. |
| References |
[1]. Biphenyl-derivatives of 2-amino-7-phosphono-heptanoic acid, a novel class of potent competitive N-methyl-D-aspartate receptor antagonists--II. Pharmacological characterization in vivo. Neuropharmacology. 1996 Jun;35(6):655-69. [2]. In vitro characterisation of the novel positive allosteric modulators of the mGlu₅ receptor, LSN2463359 and LSN2814617, and their effects on sleep architecture and operant responding in the rat. Neuropharmacology. 2013 Jan;64:224-39. |
Solubility Data
| Solubility (In Vitro) |
DMSO : ~5 mg/mL (~12.31 mM) H2O : < 0.1 mg/mL |
| Solubility (In Vivo) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 2.4618 mL | 12.3092 mL | 24.6184 mL | |
| 5 mM | 0.4924 mL | 2.4618 mL | 4.9237 mL | |
| 10 mM | 0.2462 mL | 1.2309 mL | 2.4618 mL |
