Phenazine methylsulfate is a free radical generator. Phenazine methylsulfate has been used as an electron transfer reactant in cell viabilitys. Phenazine methylsulfate induces ssDNA break formation in the presence of the reducing agent NADPH. Phenazine methylsulfate induces oxidative DNA damage in an alkaline comet assay and apoptosis.

Physicochemical Properties

Molecular Formula	C14H14N2O4S
Molecular Weight	306.34
Exact Mass	306.067
CAS #	299-11-6
PubChem CID	9285
Appearance	Yellow to brown solid powder
Melting Point	158-160 °C (dec.)(lit.)
LogP	2.386
Hydrogen Bond Donor Count	0
Hydrogen Bond Acceptor Count	5
Rotatable Bond Count	0
Heavy Atom Count	21
Complexity	297
Defined Atom Stereocenter Count	0

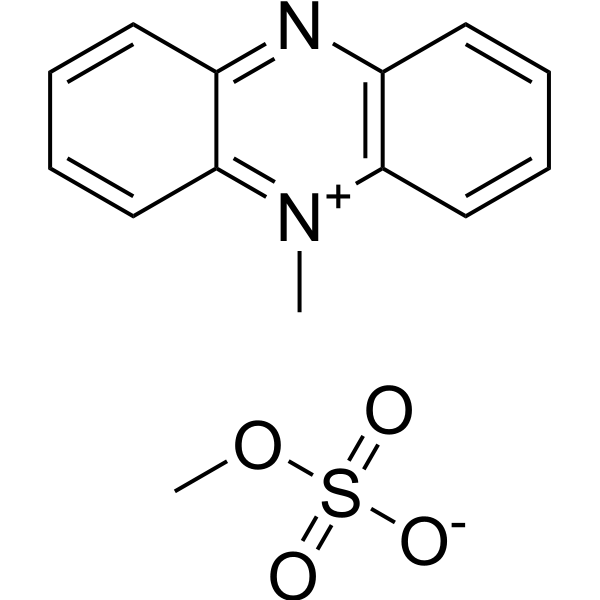

SMILES	S(=O)(=O)([O-])OC([H])([H])[H].[N+]1(C([H])([H])[H])C2=C([H])C([H])=C([H])C([H])=C2N=C2C([H])=C([H])C([H])=C([H])C=12
InChi Key	RXGJTUSBYWCRBK-UHFFFAOYSA-M
InChi Code	InChI=1S/C13H11N2.CH4O4S/c1-15-12-8-4-2-6-10(12)14-11-7-3-5-9-13(11)15;1-5-6(2,3)4/h2-9H,1H3;1H3,(H,2,3,4)/q+1;/p-1
Chemical Name	5-methylphenazin-5-ium;methyl sulfate
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment (e.g. under nitrogen), avoid exposure to moisture and light.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Additional Infomation

5-methylphenazinium methyl sulfate is an azaheterocycle sulfate salt and a member of phenazines. Used as an electron carrier in place of the flavine enzyme of Warburg in the hexosemonophosphate system and also in the preparation of SUCCINIC DEHYDROGENASE.

Solubility Data

Solubility (In Vitro)

DMSO : 62.5 mg/mL (204.02 mM) H2O : 62.5 mg/mL (204.02 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.08 mg/mL (6.79 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: 2.08 mg/mL (6.79 mM) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution; with ultrasonication. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: 100 mg/mL (326.43 mM) in PBS (add these co-solvents sequentially from left to right, and one by one), clear solution; with ultrasonication.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	3.2643 mL	16.3217 mL	32.6435 mL
	5 mM	0.6529 mL	3.2643 mL	6.5287 mL
	10 mM	0.3264 mL	1.6322 mL	3.2643 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
