PNU-177864 is a specific, orally bioactive dopamine D3 receptor antagonist. PNU-177864 is structurally consistent with a cationic amphiphilic active molecule that induces phospholipid metabolism in vivo and has anti-schizophrenia activity.

Physicochemical Properties

Molecular Formula	C18H21F3N2O3S
Molecular Weight	402.43
Exact Mass	438.099
CAS #	250266-51-4
Related CAS #	PNU-177864 hydrochloride;1783978-03-9
PubChem CID	9887351
Appearance	White to off-white solid powder
LogP	6.274
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	8
Rotatable Bond Count	9
Heavy Atom Count	27
Complexity	521
Defined Atom Stereocenter Count	0
InChi Key	JGGQWSXZZQPZTR-UHFFFAOYSA-N
InChi Code	InChI=1S/C18H21F3N2O3S/c1-2-12-22-13-11-14-3-5-15(6-4-14)23-27(24,25)17-9-7-16(8-10-17)26-18(19,20)21/h3-10,22-23H,2,11-13H2,1H3

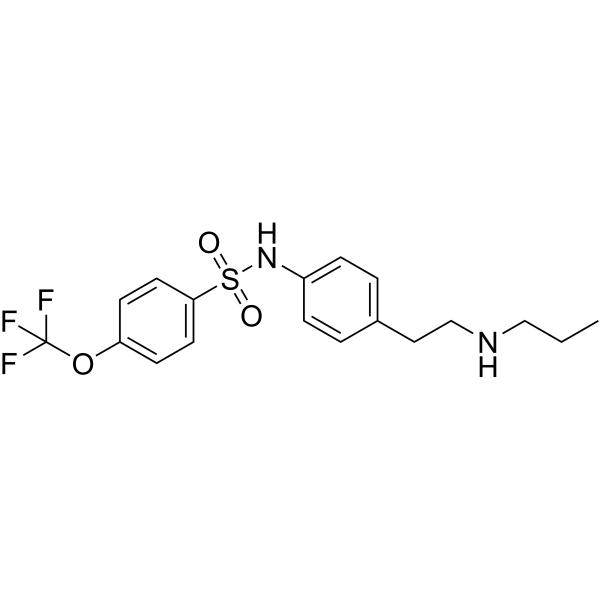

Chemical Name	N-[4-[2-(propylamino)ethyl]phenyl]-4-(trifluoromethoxy)benzenesulfonamide
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vivo	PNU-177864 treatment (12.5-200 mg/kg; oral; daily; Sprague-Dawley rats) causes phospholipid accumulation in aberrant target organs in dogs or rats, such as the pituitary gland, hair follicles, and epididymis[1].
Animal Protocol	Animal/Disease Models: Male and female SD (Sprague-Dawley) rats (8-9weeks old)[1] Doses: 12.5 mg/kg, 50 mg/kg (for 2 weeks), or 200 mg/kg; 8 mg/kg, 25 mg/kg, or 80 mg/kg (for 4 weeks) Route of Administration: Oral gavage; daily; for 2-4 weeks Experimental Results: Induced phospholipidosis in unusual target organs in dogs or rats including epididymis, pituitary, and hair follicles.
References	[1]. Epididymal and systemic phospholipidosis in rats and dogs treated with the dopamine D3 selective antagonist PNU-177864. Toxicol Pathol. 2004 May-Jun;32(3):326-32. [2]. Myopathy related to administration of a cationic amphiphilic drug and the use of multidose drug distribution analysis to predict its occurrence. Toxicol Pathol. 2004 May-Jun;32(3):318-25.

Solubility Data

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.4849 mL	12.4245 mL	24.8490 mL
	5 mM	0.4970 mL	2.4849 mL	4.9698 mL
	10 mM	0.2485 mL	1.2425 mL	2.4849 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
