NSC668036 is a Disheveled (Dvl) PDZ domain inhibitor (antagonist) with Kd of 237 µM. NSC668036 blocks Wnt signaling by disrupting Frizzled-Dvl interactions.

Physicochemical Properties

Molecular Formula	C21H36N2O9
Molecular Weight	460.518547058105
Exact Mass	460.242
CAS #	144678-63-7
PubChem CID	381448
Appearance	White to off-white solid powder
LogP	2.406
Hydrogen Bond Donor Count	3
Hydrogen Bond Acceptor Count	9
Rotatable Bond Count	14
Heavy Atom Count	32
Complexity	698
Defined Atom Stereocenter Count	0
InChi Key	IPICFSFUAKDZEI-UHFFFAOYSA-N
InChi Code	InChI=1S/C21H36N2O9/c1-10(2)14(30-19(28)13(6)23-20(29)32-21(7,8)9)16(24)22-12(5)18(27)31-15(11(3)4)17(25)26/h10-15H,1-9H3,(H,22,24)(H,23,29)(H,25,26)

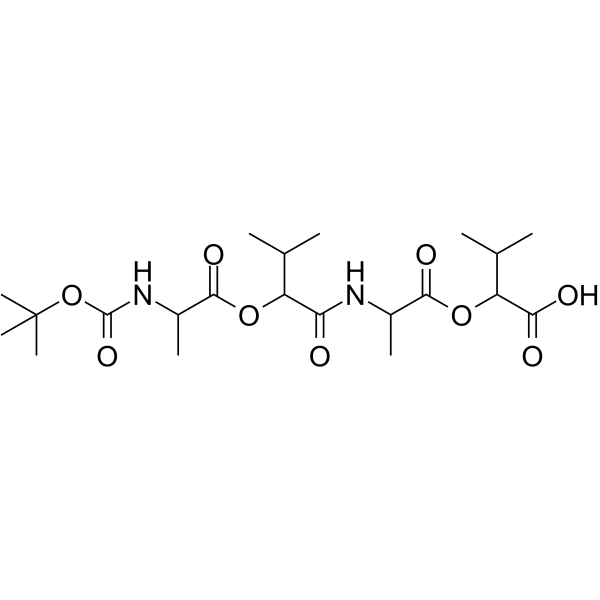

Chemical Name	3-methyl-2-[2-[[3-methyl-2-[2-[(2-methylpropan-2-yl)oxycarbonylamino]propanoyloxy]butanoyl]amino]propanoyloxy]butanoic acid
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	NSC668036 suppresses Wnt3A-induced signaling in Xenopus [1]. NSC668036 (10 μM) eliminates TGF-β1-induced fibroblast migration, type I collagen, and α-smooth muscle actin (α-SMA) production in addition to inhibiting β-catenin-driven gene transcription [2].
ln Vivo	NSC668036 (5 mg/kg) markedly reduced the accumulation of type I collagen, α-SMA, and TGF-β1 in a mouse model of bleomycin-induced lung fibrosis, but elevated CK19, which prevents pulmonary fibrosis. Occludin and E-cadherin expression [2].
References	[1]. Identification of a specific inhibitor of the dishevelled PDZ domain. Biochemistry. 2005 Nov 29;44(47):15495-503. [2]. Targeted inhibition of disheveled PDZ domain via NSC668036 depresses fibrotic process. Exp Cell Res. 2015 Feb 1;331(1):115-122.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.1715 mL	10.8573 mL	21.7146 mL
	5 mM	0.4343 mL	2.1715 mL	4.3429 mL
	10 mM	0.2171 mL	1.0857 mL	2.1715 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
