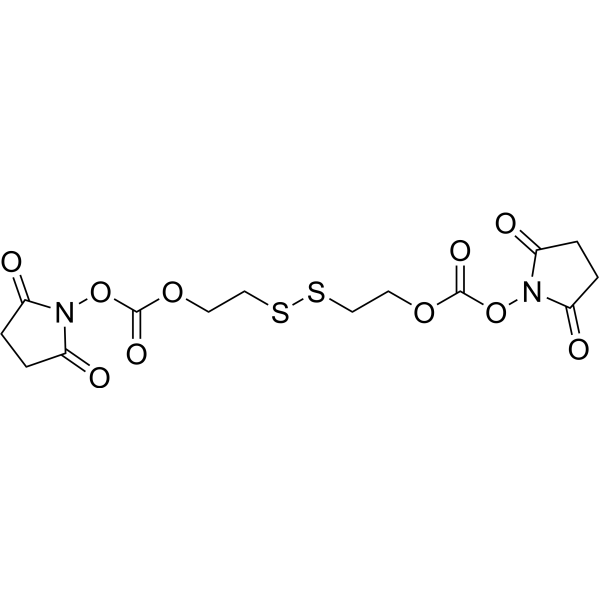

NHS-PEG1-SS-PEG1-NHS is a reversible linker for the interaction between biological macromolecules and active small molecules. NHS-PEG1-SS-PEG1-NHS may be utilized in proteoliposomes or nanoparticles.

Physicochemical Properties

Molecular Formula	C14H16N2O10S2
Molecular Weight	436.4142
Exact Mass	436.024
CAS #	1688598-83-5
PubChem CID	60164121
Appearance	White to off-white solid powder
LogP	-0.3
Hydrogen Bond Donor Count	0
Hydrogen Bond Acceptor Count	12
Rotatable Bond Count	13
Heavy Atom Count	28
Complexity	583
Defined Atom Stereocenter Count	0
InChi Key	BEMZOXCMCMCTHY-UHFFFAOYSA-N
InChi Code	InChI=1S/C14H16N2O10S2/c17-9-1-2-10(18)15(9)25-13(21)23-5-7-27-28-8-6-24-14(22)26-16-11(19)3-4-12(16)20/h1-8H2
Chemical Name	(2,5-dioxopyrrolidin-1-yl) 2-[2-(2,5-dioxopyrrolidin-1-yl)oxycarbonyloxyethyldisulfanyl]ethyl carbonate
Synonyms	NHSPEG1SSPEG1NHS; NHS PEG1 SS PEG1 NHS
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment (e.g. under nitrogen), avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~229.14 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (5.73 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (5.73 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (5.73 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.2914 mL	11.4571 mL	22.9142 mL
	5 mM	0.4583 mL	2.2914 mL	4.5828 mL
	10 mM	0.2291 mL	1.1457 mL	2.2914 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
