NGX-267 is a novel and potent muscarinic M1 agonist

Physicochemical Properties

Molecular Formula	C10H18N2OS
Molecular Weight	214.32772
Exact Mass	214.114
CAS #	503431-81-0
Related CAS #	503431-81-0;869377-75-3 (hydrate);
PubChem CID	10013505
Appearance	Typically exists as solid at room temperature
Density	1.171g/cm3
Boiling Point	399.167ºC at 760 mmHg
Melting Point	132-134ºC
Flash Point	195.21ºC
Index of Refraction	1.569
LogP	1.316
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	3
Rotatable Bond Count	1
Heavy Atom Count	14
Complexity	236
Defined Atom Stereocenter Count	1
SMILES	CC[C@H]1C(NC2(S1)CCN(CC2)C)=O
InChi Key	PHOZOHFUXHPOCK-QMMMGPOBSA-N
InChi Code	InChI=1S/C10H18N2OS/c1-3-8-9(13)11-10(14-8)4-6-12(2)7-5-10/h8H,3-7H2,1-2H3,(H,11,13)/t8-/m0/s1

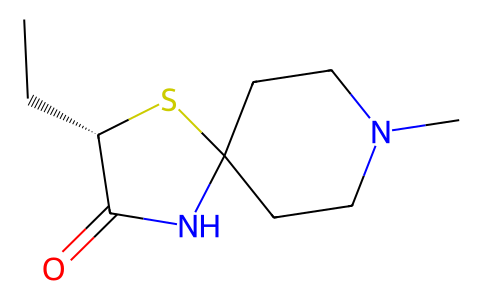

Chemical Name	(2S)-2-ethyl-8-methyl-1-thia-4,8-diazaspiro[4.5]decan-3-one
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Additional Infomation

NGX267 is a muscarinic agonist. It is developed for the treatment of Alzheimer’s disease and has shown the potential to both reduce symptoms and slow disease progression. Drug Indication Investigated for use/treatment in alzheimer's disease and schizophrenia and schizoaffective disorders. Mechanism of Action NGX267 has been shown to stimulate M1 receptors in a fashion analogous to acetylcholine, a neurotransmitter essential for memory and cognitive function that is depleted when neurons, or brain cells, degenerate. The M1 receptor plays an important role in memory and cognitive processing. Its activation has also been linked to decreases in two biochemical processes, AB production and tau protein phosphorylation, both of which are involved in the creation of the neurofibrillary tangles and amyloidplaques that are major histopathological hallmarks of Alzheimer's disease. By selectively enhancing M1 cholinergic neurotransmission in the brain, NGX267 may offer advantages over current therapies for Alzheimer's disease due to the relative preservation of this system in patients who are clinically symptomatic. Pharmacodynamics Due to its mechanism of action, NGX267 may be simultaneously effective in treating the memory and cognitive disturbances experienced by Alzheimer's patients and in reducing the creation of neurotoxic proteins, thereby delaying disease progression.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	4.6657 mL	23.3285 mL	46.6570 mL
	5 mM	0.9331 mL	4.6657 mL	9.3314 mL
	10 mM	0.4666 mL	2.3329 mL	4.6657 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
