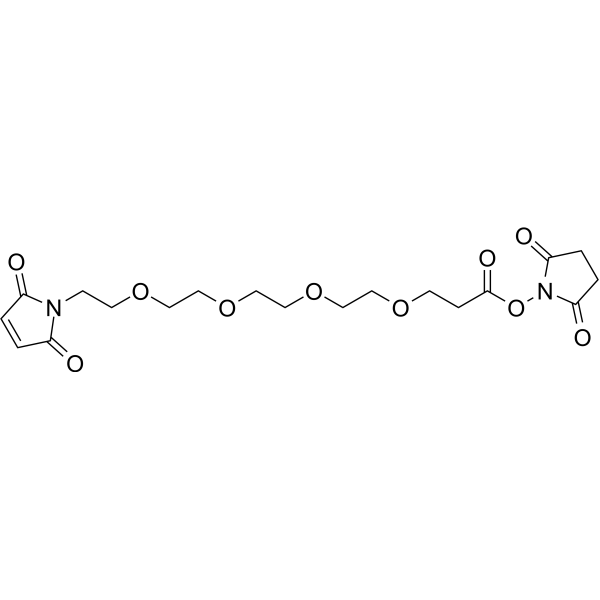

Mal-PEG4-NHS ester is a non-cleavable (non-degradable) ADC linker that connects quantum dots (QDs) to PEGylated liposomes.

Physicochemical Properties

Molecular Formula	C19H26N2O10
Molecular Weight	442.4171
Exact Mass	442.158
CAS #	1325208-25-0
PubChem CID	60146183
Appearance	Off-white to yellow solid powder
Density	1.4±0.1 g/cm3
Boiling Point	580.5±60.0 °C at 760 mmHg
Flash Point	304.9±32.9 °C
Vapour Pressure	0.0±1.6 mmHg at 25°C
Index of Refraction	1.547
LogP	-2.96
Hydrogen Bond Donor Count	0
Hydrogen Bond Acceptor Count	10
Rotatable Bond Count	17
Heavy Atom Count	31
Complexity	659
Defined Atom Stereocenter Count	0
InChi Key	TUPOSLKVPPFQGR-UHFFFAOYSA-N
InChi Code	InChI=1S/C19H26N2O10/c22-15-1-2-16(23)20(15)6-8-28-10-12-30-14-13-29-11-9-27-7-5-19(26)31-21-17(24)3-4-18(21)25/h1-2H,3-14H2
Chemical Name	(2,5-dioxopyrrolidin-1-yl) 3-[2-[2-[2-[2-(2,5-dioxopyrrol-1-yl)ethoxy]ethoxy]ethoxy]ethoxy]propanoate
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References

[1]. Assembly and targeting of liposomal nanoparticles encapsulating quantum dots. Bioconjug Chem. 2011;22(8):1638-1644.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~226.03 mM)

Solubility (In Vivo)

Solubility in Formulation 1: 2.08 mg/mL (4.70 mM) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), suspension solution; with sonication. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.08 mg/mL (4.70 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.2603 mL	11.3015 mL	22.6030 mL
	5 mM	0.4521 mL	2.2603 mL	4.5206 mL
	10 mM	0.2260 mL	1.1301 mL	2.2603 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
