Jaspamycin (7-CN-7-C-Ino) is a naturally occuring metabolite isolated from the marine sponge Jaspis splendens with anti-parasite activity. It is a potent activator of PKA (EC50 = 6.5 nM and Kd o= 8 nM).

Physicochemical Properties

Molecular Formula	C12H12N4O5
Molecular Weight	292.2475
Exact Mass	292.081
CAS #	22242-96-2
PubChem CID	136670059
Appearance	Light yellow to yellow solid powder
Density	1.91g/cm3
Boiling Point	724.3ºC at 760 mmHg
Flash Point	391.8ºC
Vapour Pressure	5.1E-22mmHg at 25°C
Index of Refraction	1.827
LogP	-2.1
Hydrogen Bond Donor Count	4
Hydrogen Bond Acceptor Count	7
Rotatable Bond Count	2
Heavy Atom Count	21
Complexity	517
Defined Atom Stereocenter Count	4

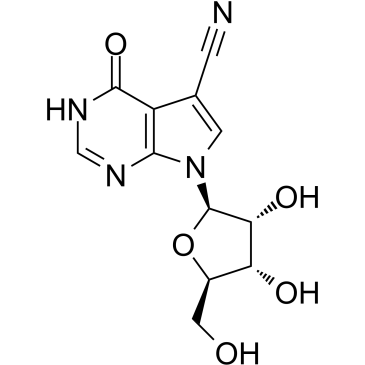

SMILES	C1=C(C2=C(N1[C@H]3[C@@H]([C@@H]([C@H](O3)CO)O)O)N=CNC2=O)C#N
InChi Key	SKDKFLFSBDYEDO-WOUKDFQISA-N
InChi Code	InChI=1S/C12H12N4O5/c13-1-5-2-16(10-7(5)11(20)15-4-14-10)12-9(19)8(18)6(3-17)21-12/h2,4,6,8-9,12,17-19H,3H2,(H,14,15,20)/t6-,8-,9-,12-/m1/s1
Chemical Name	7-[(2R,3R,4S,5R)-3,4-dihydroxy-5-(hydroxymethyl)oxolan-2-yl]-4-oxo-3H-pyrrolo[2,3-d]pyrimidine-5-carbonitrile
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References

[1]. Nucleoside analogue activators of cyclic AMP-independent protein kinase A of Trypanosoma. Nat Commun. 2019 Mar 29;10(1):1421.

Solubility Data

Solubility (In Vitro)

DMSO : ~41.67 mg/mL (~142.58 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.08 mg/mL (7.12 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.08 mg/mL (7.12 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.08 mg/mL (7.12 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	3.4217 mL	17.1086 mL	34.2173 mL
	5 mM	0.6843 mL	3.4217 mL	6.8435 mL
	10 mM	0.3422 mL	1.7109 mL	3.4217 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
