H3R antagonist 1 HCl is a potent histamine receptor 3 (H3R) inverse agonist. For more details, check and find compound 2 from the patent WO2013107336A1.

Physicochemical Properties

Molecular Formula	C19H24CLN3O3
Molecular Weight	377.865163803101
Exact Mass	377.15
CAS #	2319790-07-1
PubChem CID	134611620
Appearance	White to off-white solid powder
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	6
Rotatable Bond Count	4
Heavy Atom Count	26
Complexity	453
Defined Atom Stereocenter Count	0
SMILES	Cl.O1C(CC2CCN(CC2)C2CCC2)=NC(C2=CC=C3C(=C2)OCO3)=N1
InChi Key	AUFJPTAYJFKWNF-UHFFFAOYSA-N
InChi Code	InChI=1S/C19H23N3O3.ClH/c1-2-15(3-1)22-8-6-13(7-9-22)10-18-20-19(21-25-18)14-4-5-16-17(11-14)24-12-23-16;/h4-5,11,13,15H,1-3,6-10,12H2;1H

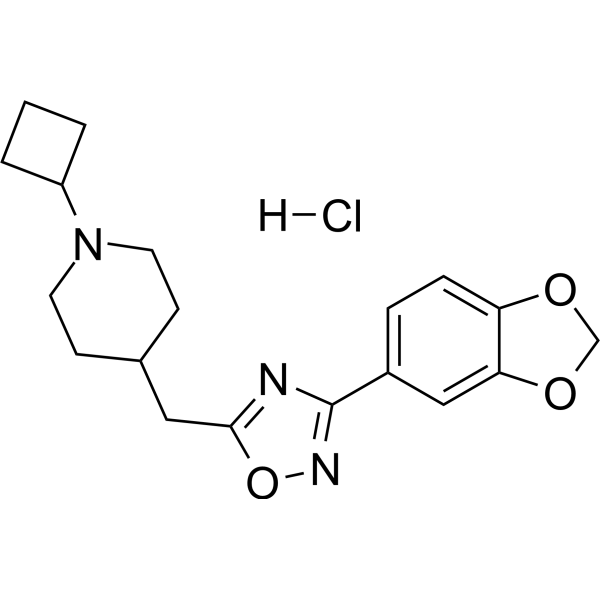

Chemical Name	3-(1,3-benzodioxol-5-yl)-5-[(1-cyclobutylpiperidin-4-yl)methyl]-1,2,4-oxadiazole;hydrochloride
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	H3 receptor
ln Vitro	Treatment with the H3R inverse agonist H3R antagonist 1 hydrochloride promotes the differentiation of oligodendrocyte precursor cells (OPCs) in a dose-dependent manner, at EC50=25 nM. Western blot shows a significant increase in the expression levels of two markers of mature oligodendrocytes in differentiating oligodendrocytes following treatment with H3R antagonist 1 hydrochloride: myelin-associated glycoprotein (MAG) and myeline basic protein (MBP). This suggests that treatment with H3R antagonist 1 hydrochloride stimulates the differentiation of more OPCs. In the primary oligodendrocyte precursor cells, H3R antagonist 1 hydrochloride raises the level of Forskolin-stimulated cAMP in a dose-dependent manner[1].
ln Vivo	The Cuprizone/Rapamycin-induced demyelination paradigm is used to assess the impact of H3R antagonist 1 hydrochloride-1 on in vivo remyelination. For five weeks, mice are given a Cuprizone diet along with intraperitoneal injections of Rapamycin. After nine days, the mice are given the chemical. Treatment with H3R antagonist 1 hydrochloride (30 mg/kg, 9 days) significantly increases density of myelin specific Black-gold II staining in the lesion of corpus callosum and cortex in forebrain, compared to vehicle control group[1]. Cuprizone diet plus intraperitoneal injections of Rapamycin induced severe demyelination in both corpus callosum and cortex.
References	[1]. THERAPEUTIC USES. WO2013107336A1.

Solubility Data

Solubility (In Vitro)

DMSO: 25 mg/mL (66.16 mM; with heating) H2O: 25 mg/mL (66.16 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.6464 mL	13.2321 mL	26.4641 mL
	5 mM	0.5293 mL	2.6464 mL	5.2928 mL
	10 mM	0.2646 mL	1.3232 mL	2.6464 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
