Gunagratinib (ICP-192) is a low-toxic, orally bioactive pan-FGFR (fibroblast growth factor receptor) inhibitor that potently, selectively and irreversibly inhibits FGFR activity through covalent binding. Gunagratinib may be used in cancer research. Gunagratinib is a click chemical agent. It contains Alkyne groups and could undergo CuAAc (copper-catalyzed azide-alkyne cycloaddition reaction) with compounds bearing an Azide group.

Physicochemical Properties

Molecular Formula	C22H25N5O4
Molecular Weight	423.47
Exact Mass	423.19
CAS #	2211082-53-8
PubChem CID	138734912
Appearance	White to off-white solid powder
LogP	2.2
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	6
Rotatable Bond Count	8
Heavy Atom Count	31
Complexity	735
Defined Atom Stereocenter Count	1

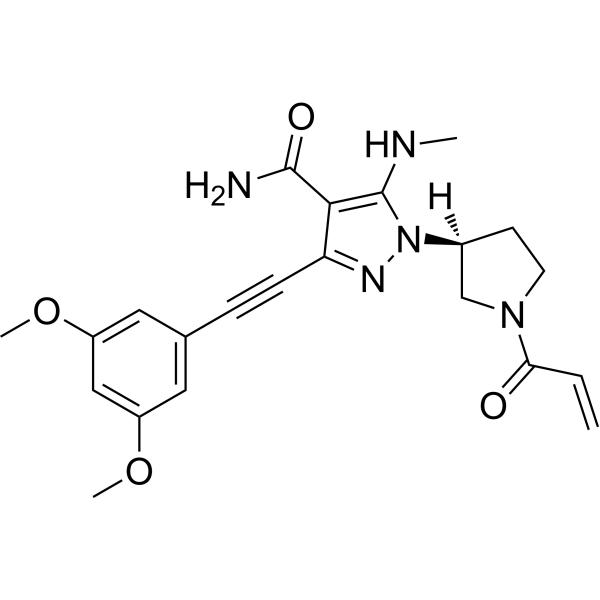

SMILES	N1([C@H]2CCN(C(=O)C=C)C2)C(NC)=C(C(N)=O)C(C#CC2=CC(OC)=CC(OC)=C2)=N1
InChi Key	QFUIJOBJAQBGDH-HNNXBMFYSA-N
InChi Code	InChI=1S/C22H25N5O4/c1-5-19(28)26-9-8-15(13-26)27-22(24-2)20(21(23)29)18(25-27)7-6-14-10-16(30-3)12-17(11-14)31-4/h5,10-12,15,24H,1,8-9,13H2,2-4H3,(H2,23,29)/t15-/m0/s1
Chemical Name	3-[2-(3,5-dimethoxyphenyl)ethynyl]-5-(methylamino)-1-[(3S)-1-prop-2-enoylpyrrolidin-3-yl]pyrazole-4-carboxamide
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment (e.g. under nitrogen), avoid exposure to moisture and light.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	FGFR
ln Vitro	By covalently binding to FGFR receptors, gunagratinib (ICP-192), an oral FGFR (fibroblast growth factor receptors) inhibitor with low toxicity, selectively and potently inhibits FGFR activities irreversibly[1].
References	[1]. Phase I result of ICP-192 (gunagratinib), a highly selective irreversible FGFR inhibitor, in patients with advanced solid tumors harboring FGFR pathway alterations. Journal of Clinical Oncology 39, no. 15_suppl (May 20, 2021) 4092-4092.
Additional Infomation	Gunagratinib is a small molecule pan inhibitor of human fibroblast growth factor receptors (FGFRs), with potential antiangiogenic and antineoplastic activities. Upon oral administration,gunagratinib inhibits the activities of FGFRs, which may result in the inhibition of both tumor angiogenesis and tumor cell proliferation, and the induction of tumor cell death. FGFRs, a family of receptor tyrosine kinases upregulated in various tumor cell types, may be involved in tumor cell differentiation and proliferation, tumor angiogenesis, and tumor cell survival.

Solubility Data

Solubility (In Vitro)

DMSO: 100 mg/mL (236.14 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.3614 mL	11.8072 mL	23.6144 mL
	5 mM	0.4723 mL	2.3614 mL	4.7229 mL
	10 mM	0.2361 mL	1.1807 mL	2.3614 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
