DPM-1001 is a potent, specific, orally bioactive, and noncompetitive protein tyrosine phosphatase (PTP1B) inhibitor (antagonist) with IC50 of 100 nM. DPM-1001 is an analog of the specific PTP1B inhibitor MSI-1436 (IC50=600 nM). DPM-1001 has anti-diabetic properties.

Physicochemical Properties

Molecular Formula	C35H57N3O3
Molecular Weight	567.845390081406
Exact Mass	567.44
CAS #	1471172-27-6
Related CAS #	DPM-1001 trihydrochloride
PubChem CID	139291002
Appearance	Light yellow to brown solid powder
LogP	6.2
Hydrogen Bond Donor Count	3
Hydrogen Bond Acceptor Count	6
Rotatable Bond Count	13
Heavy Atom Count	41
Complexity	855
Defined Atom Stereocenter Count	10
SMILES	O[C@@H]1C[C@H]2C[C@@H](CC[C@]2(C)[C@H]2CC[C@]3(C)[C@@H]([C@H](C)CCC(=O)OC)CC[C@H]3[C@@H]21)NCCCCNCC1C=CC=CN=1
InChi Key	RVANDQULNPITCN-MCVYBXALSA-N
InChi Code	InChI=1S/C35H57N3O3/c1-24(10-13-32(40)41-4)28-11-12-29-33-30(15-17-35(28,29)3)34(2)16-14-26(21-25(34)22-31(33)39)37-20-8-7-18-36-23-27-9-5-6-19-38-27/h5-6,9,19,24-26,28-31,33,36-37,39H,7-8,10-18,20-23H2,1-4H3/t24-,25-,26-,28-,29+,30+,31-,33+,34+,35-/m1/s1

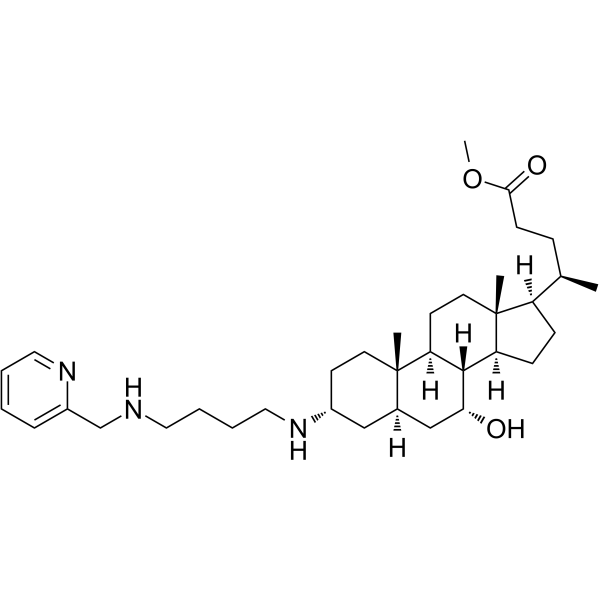

Chemical Name	methyl (4R)-4-[(3R,5R,7R,8R,9S,10S,13R,14S,17R)-7-hydroxy-10,13-dimethyl-3-[4-(pyridin-2-ylmethylamino)butylamino]-2,3,4,5,6,7,8,9,11,12,14,15,16,17-tetradecahydro-1H-cyclopenta[a]phenanthren-17-yl]pentanoate
Synonyms	DPM 1001; DPM1001; DPM-1001
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	PTP1B(1-405) is inactive for extended periods of time, but DPM-1001 reversibly inhibits PTP1B in its short form. DPM-1001 has an IC50 value of 600 nM for PTP1B(1-405) and targets PTP1B(1-405) without preincubation. But following a half-hour preincubation, the potency rose to 100 nM. On the other hand, the IC50 value of PTP1B(1-321)[1] does not appear to vary with time.
ln Vivo	By enhancing insulin and leptin signaling, DPM-1001 (orally or intraperitoneally; 5 mg/kg; once daily; 50 days) prevents diet-induced obesity in rats. Within five days of receiving DPM-1001 therapy and a high-fat diet, mice started to lose weight. Approximately three weeks pass during which time weight loss stops [1].
Animal Protocol	Animal/Disease Models: 18weeks old, high-fat diet (HFD)-fed obese male mice (C57bl6/J) [1] Doses: 5 mg/kg Route of Administration: oral or intraperitoneal (ip) injection; 5 mg/kg; one time/day; 50 day Experimental Results: 5% weight loss. Improves glucose tolerance and insulin sensitivity in the body.
References	[1]. A potent, selective, and orally bioavailable inhibitor of the protein-tyrosine phosphatase PTP1B improves insulin and leptin signaling in animal models. J Biol Chem. 2018 Feb 2;293(5):1517-1525.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~176.10 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 5 mg/mL (8.81 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 50.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 5 mg/mL (8.81 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 50.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 5 mg/mL (8.81 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 50.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.7610 mL	8.8051 mL	17.6103 mL
	5 mM	0.3522 mL	1.7610 mL	3.5221 mL
	10 mM	0.1761 mL	0.8805 mL	1.7610 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
