DNP-PEG3-azide is a PROTAC (PROteolysis TArgeting Chimera) linker of the Polyethylene glycol (PEG) category, may be utilized to prepare PROTAC protein degraders. DNP-PEG3-azide is a reagent for click chemistry. It has an Azide (N3) moiety and could undergo CuAAc (copper-catalyzed azide-alkyne cycloaddition reaction) with compounds bearing an Alkyne group. SPAAC (Strain-promoted alkyne-azide cycloaddition) may also happen with compounds bearing a BCN or DBCO group.

Physicochemical Properties

Molecular Formula	C14H20N6O7
Molecular Weight	384.344602584839
Exact Mass	384.139
CAS #	951671-87-7
PubChem CID	123132137
Appearance	White to off-white solid powder
LogP	2.6
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	10
Rotatable Bond Count	13
Heavy Atom Count	27
Complexity	491
Defined Atom Stereocenter Count	0

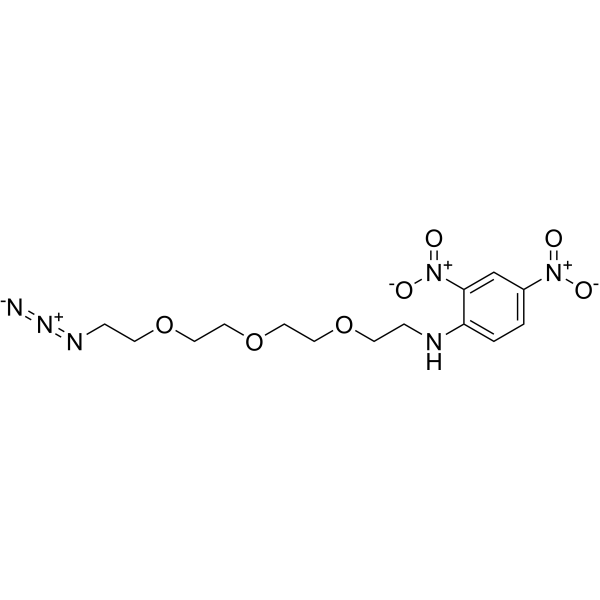

SMILES	[N-]=[N+]=NCCOCCOCCOCCNC1C([N+](=O)[O-])=CC([N+](=O)[O-])=CC=1
InChi Key	FIAOTUUAWJBUBV-UHFFFAOYSA-N
InChi Code	InChI=1S/C14H20N6O7/c15-18-17-4-6-26-8-10-27-9-7-25-5-3-16-13-2-1-12(19(21)22)11-14(13)20(23)24/h1-2,11,16H,3-10H2
Chemical Name	N-[2-[2-[2-(2-azidoethoxy)ethoxy]ethoxy]ethyl]-2,4-dinitroaniline
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	One ligand is for an E3 ubiquitin ligase, and the other is for the target protein; these two ligands are joined by a linker to form PROTACs. The intracellular ubiquitin-proteasome system is utilized by PROTACs to specifically destroy target proteins[1].
References	[1]. Small-molecule PROTACs: An emerging and promising approach for the development of targeted therapy drugs. EBioMedicine. 2018 Oct;36:553-562.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~260.19 mM)

Solubility (In Vivo)

Solubility in Formulation 1: 2.5 mg/mL (6.50 mM) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), suspension solution; with sonication. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: 2.5 mg/mL (6.50 mM) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), suspension solution; with ultrasonication. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.6019 mL	13.0093 mL	26.0186 mL
	5 mM	0.5204 mL	2.6019 mL	5.2037 mL
	10 mM	0.2602 mL	1.3009 mL	2.6019 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
