CGS-27023A (MMI270B) is a novel and potent matrix metalloproteinase inhibitor

Physicochemical Properties

Molecular Formula	C18H23N3O5S
Molecular Weight	393.46
Exact Mass	429.112
Elemental Analysis	C, 50.29; H, 5.63; Cl, 8.25; N, 9.77; O, 18.61; S, 7.46
CAS #	161314-82-5
Related CAS #	161314-70-1; 161314-82-5 (HCl)
PubChem CID	9888897
Appearance	Typically exists as solid at room temperature
Hydrogen Bond Donor Count	3
Hydrogen Bond Acceptor Count	7
Rotatable Bond Count	8
Heavy Atom Count	28
Complexity	570
Defined Atom Stereocenter Count	1

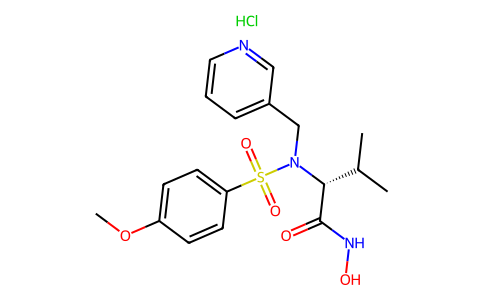

SMILES	Cl.COC1C=CC(S(N([C@@H](C(NO)=O)C(C)C)CC2C=CC=NC=2)(=O)=O)=CC=1
InChi Key	ZVYIZSNCEAHMCF-UNTBIKODSA-N
InChi Code	InChI=1S/C18H23N3O5S.ClH/c1-13(2)17(18(22)20-23)21(12-14-5-4-10-19-11-14)27(24,25)16-8-6-15(26-3)7-9-16;/h4-11,13,17,23H,12H2,1-3H3,(H,20,22);1H/t17-;/m1./s1
Chemical Name	(2R)-N-hydroxy-2-[(4-methoxyphenyl)sulfonyl-(pyridin-3-ylmethyl)amino]-3-methylbutanamide;hydrochloride
Synonyms	CGS27023A; CGS 27023A; CGS 27023A; 161314-82-5; cgs27023a; MMI270B anhydrous; 169799-04-6; MMI-270B anhydrous; CGS-27023A anhydrous; CGS-27023A HCl; CGS-27023A
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	MMP/matrix metalloproteinase
ln Vivo	The CGS 27023A derivative (R)-2-(N-((6-fluoropyridin-3-yl)methyl)-4-methoxyphenyl-sulphonamido)-N-hydroxy-3-methylbutanamide 1a was identified as a very potent matrix metalloproteinase inhibitor. Here, we describe a one-step radiosynthesis of the target compound [(18)F]1a. The syntheses of [(18)F]1a resulted in a radiochemical yield of 12.1+/-5.9% (decay-corrected), a radiochemical purity of 98.8+/-0.6%, and a specific activity of 39+/-27 GBq/micromol at the end of synthesis within 160+/-18 min from the end of radionuclide production (n=5). Initial small-animal PET studies in wild-type mice (C57/BL6) showed no unfavourable tissue accumulation of [(18)F]1a[1].
ADME/Pharmacokinetics	MMI270B is a matrix metalloproteinase inhibitor (MMPI) with in vitro and in vivo activity. To exert optimal target inhibition, MMPI must be given chronically, and therefore, oral bioavailability is important. We analyzed the effect of food intake on AUC0-8 h, Cmax, and Tmax. Seventeen patients were entered into the study. Doses of MMI270B were 150, 400, and 600 mg. The first day, patients ingested the drug in a fasted state and were not allowed to eat for 2 h. The second day, patients ingested the drug 30 min after a light breakfast. Mean AUC0-8 h was not significantly influenced by food intake. Plasma concentrations were well above the IC50 of several MMPs at all doses tested. Mean Cmax was significantly decreased after food intake. Mean Tmax was significantly delayed after food intake. Food intake did not result in a significant change in exposure to MMI270B (AUC0-8 h) but did result in a significant, although not clinically relevant, decrease in peak plasma levels and time to reach peak plasma levels. No specific guidelines concerning the ingestion of MMI270B in either a fed or a fasted state are recommended. Clin Cancer Res. 2000 Feb;6(2):431-3.
References	[1]. A new 18F-labelled derivative of the MMP inhibitor CGS 27023A for PET: radiosynthesis and initial small-animal PET studies. Appl Radiat Isot. 2009 Apr;67(4):606-10

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.5416 mL	12.7078 mL	25.4155 mL
	5 mM	0.5083 mL	2.5416 mL	5.0831 mL
	10 mM	0.2542 mL	1.2708 mL	2.5416 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
