BMS-P5 is a specific, orally bioactive inhibitor of peptide arginine diiminase 4 (PAD4). BMS-P5 blocks multiple myeloma-induced NET formation and delays tumor progression.

Physicochemical Properties

Molecular Formula	C27H33CLN6O2
Molecular Weight	509.042924642563
Exact Mass	508.235
CAS #	1549811-36-0
Related CAS #	BMS-P5 free base;1550371-22-6
PubChem CID	140275843
Appearance	Off-white to light yellow solid powder
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	5
Rotatable Bond Count	5
Heavy Atom Count	36
Complexity	779
Defined Atom Stereocenter Count	2
SMILES	C[C@H]1CC[C@H](CN1C(=O)C2=CC3=C(C(=C2)OC)N(C(=N3)C4=CC5=C(N4CC6CC6)N=CC=C5)C)N.Cl
InChi Key	UMXWDEKCDIDCBA-VASSOYJASA-N
InChi Code	InChI=1S/C27H32N6O2.ClH/c1-16-6-9-20(28)15-32(16)27(34)19-11-21-24(23(13-19)35-3)31(2)26(30-21)22-12-18-5-4-10-29-25(18)33(22)14-17-7-8-17;/h4-5,10-13,16-17,20H,6-9,14-15,28H2,1-3H3;1H/t16-,20+;/m0./s1

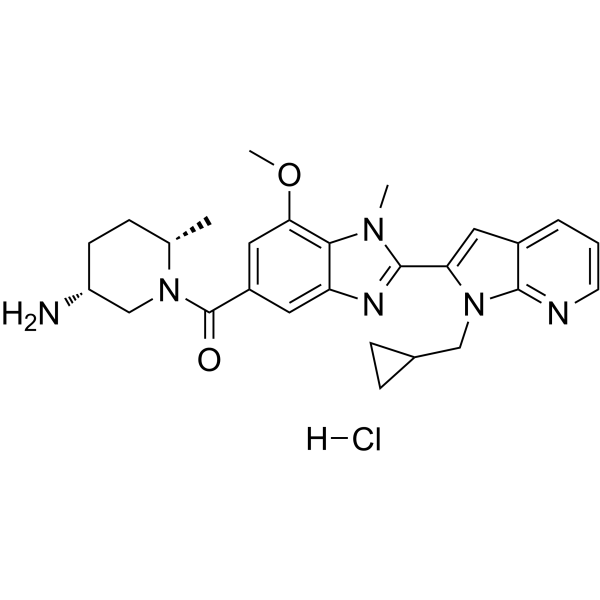

Chemical Name	[(2S,5R)-5-amino-2-methylpiperidin-1-yl]-[2-[1-(cyclopropylmethyl)pyrrolo[2,3-b]pyridin-2-yl]-7-methoxy-1-methylbenzimidazol-5-yl]methanone;hydrochloride
Synonyms	BMS-P5 HCL
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	Histone H3 citrullination induced by calcium ionophore is inhibited by BMS-P5[1]. Moreover, BMS-P5 can prevent the development of NETs that are brought on by primary MM cells that are taken from the bone marrow of MM patients[1].
ln Vivo	The oral gavage of BMS-P5 at a dose of 50 mg/kg considerably increases the survival of mice having MM[1]. By reducing the amount of pro-tumorigenic proteins in the tumor microenvironment, BMS-P5 (50 mg/kg, oral gavage) may slow the growth of the tumor[1].
Cell Assay	Cell Viability Assay[1] Cell Types: Neutrophils. Tested Concentrations: 10 µM and 100 µM. Incubation Duration: 30 min followed by addition of DP42 or 5TGM1 CM. Experimental Results: Prevented MM-induced NET formation.
Animal Protocol	Animal/Disease Models: Syngeneic mouse model of MM[1]. Doses: 50 mg/kg. Route of Administration: po (oral gavage), twice a day beginning on day 3 after tumor cell injection. Experimental Results: Dramatically delayed development of symptoms and Dramatically prolonged survival of MM-bearing mice.
References	[1]. A Novel Peptidylarginine Deiminase 4 (PAD4) Inhibitor BMS-P5 Blocks Formation of Neutrophil Extracellular Traps and Delays Progression of Multiple Myeloma. Mol Cancer Ther. 2020 Jul;19(7):1530-1538.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.9645 mL	9.8224 mL	19.6448 mL
	5 mM	0.3929 mL	1.9645 mL	3.9290 mL
	10 mM	0.1964 mL	0.9822 mL	1.9645 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
