Arimoclomol citrate (BRX-220 citrate) is a heat shock protein (HSP) co-inducer. Arimoclomol citrate protects motor neurons by enhancing Hsp expression, thereby directly affecting protein aggregation and clearing misfolded and assembled proteins through the ubiquitin-proteasome system.

Physicochemical Properties

Molecular Formula	C20H28CLN3O10
Molecular Weight	505.90
Exact Mass	505.146
CAS #	368860-21-3
Related CAS #	Arimoclomol maleate;289893-26-1;Arimoclomol;289893-25-0
PubChem CID	72710735
Appearance	Typically exists as solid at room temperature
LogP	0.568
Hydrogen Bond Donor Count	5
Hydrogen Bond Acceptor Count	12
Rotatable Bond Count	11
Heavy Atom Count	34
Complexity	565
Defined Atom Stereocenter Count	1

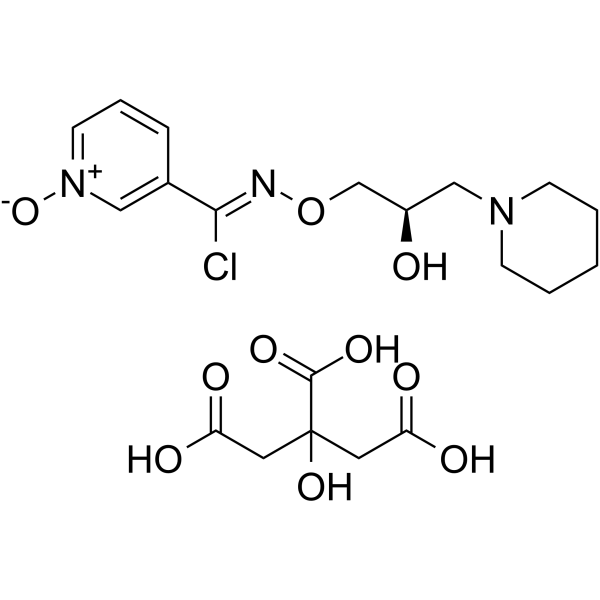

SMILES	Cl/C(/C1=CC=C[N+](=C1)[O-])=N\OC[C@@H](CN1CCCCC1)O.OC(C(=O)O)(CC(=O)O)CC(=O)O
InChi Key	XSENLDLUMVYRET-BTQNPOSSSA-N
InChi Code	InChI=1S/C14H20ClN3O3.C6H8O7/c15-14(12-5-4-8-18(20)9-12)16-21-11-13(19)10-17-6-2-1-3-7-17;7-3(8)1-6(13,5(11)12)2-4(9)10/h4-5,8-9,13,19H,1-3,6-7,10-11H2;13H,1-2H2,(H,7,8)(H,9,10)(H,11,12)/t13-;/m1./s1
Chemical Name	N-[(2R)-2-hydroxy-3-piperidin-1-ylpropoxy]-1-oxidopyridin-1-ium-3-carboximidoyl chloride;2-hydroxypropane-1,2,3-tricarboxylic acid
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	HSP
ln Vivo	Arimoclomol (BRX-220; 20 mg/kg; used orally for 5 days) protects against acute pancreatitis caused by cholecystokinin-octapeptide (CCK)[1].
Animal Protocol	Animal/Disease Models: Male Wistar rats weighing 240 to 270 g[1] Doses: 20 mg/kg Route of Administration: Administered intragastrically (po), for 5 days Experimental Results: Had a protective effect against CCK-induced acute pancreatitis.
References	[1]. Nontoxic heat shock protein coinducer BRX-220 protects against acute pancreatitis in rats. Free Radic Biol Med. 2002 Jun 15;32(12):1283-92. [2]. Phukan J. Arimoclomol, a coinducer of heat shock proteins for the potential treatment of amyotrophic lateral sclerosis. IDrugs. 2010 Jul;13(7):482-96.
Additional Infomation	Drug Indication Treatment of amyotrophic lateral sclerosis Treatment of amyotrophic lateral sclerosis, Treatment of sporadic inclusion body myositis Treatment of Niemann-Pick disease, type C

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.9767 mL	9.8834 mL	19.7668 mL
	5 mM	0.3953 mL	1.9767 mL	3.9534 mL
	10 mM	0.1977 mL	0.9883 mL	1.9767 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
