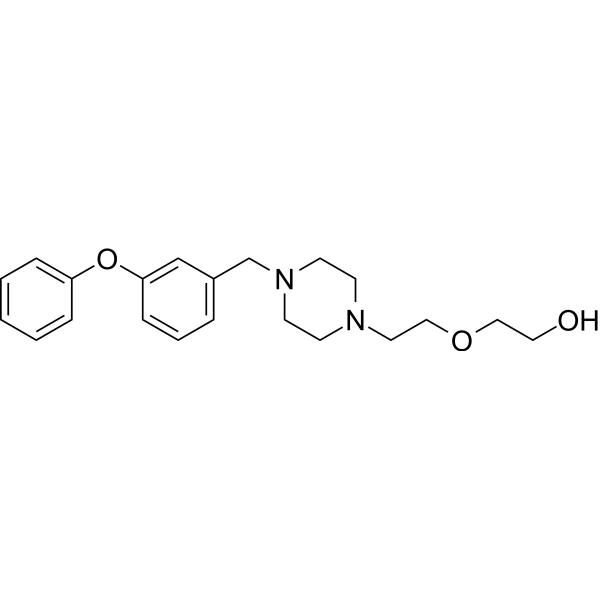

ZK756326 is a non-peptide chemokine receptor agonist (activator) that targets the CC chemokine receptor CCR8.

Physicochemical Properties

Molecular Formula	C21H28N2O3
Molecular Weight	356.46
Exact Mass	428.163
CAS #	874911-96-3
PubChem CID	56972201
Appearance	Typically exists as solid at room temperature
Density	1.142±0.06 g/cm3
LogP	4.085
Hydrogen Bond Donor Count	3
Hydrogen Bond Acceptor Count	5
Rotatable Bond Count	9
Heavy Atom Count	28
Complexity	368
Defined Atom Stereocenter Count	0
SMILES	Cl[H].Cl[H].O(C([H])([H])C([H])([H])O[H])C([H])([H])C([H])([H])N1C([H])([H])C([H])([H])N(C([H])([H])C2C([H])=C([H])C([H])=C(C=2[H])OC2C([H])=C([H])C([H])=C([H])C=2[H])C([H])([H])C1([H])[H]
InChi Key	MPACCEKWFGWZHS-UHFFFAOYSA-N
InChi Code	InChI=1S/C21H28N2O3.2ClH/c24-14-16-25-15-13-22-9-11-23(12-10-22)18-19-5-4-8-21(17-19)26-20-6-2-1-3-7-20;;/h1-8,17,24H,9-16,18H2;2*1H
Chemical Name	2-[2-[4-[(3-phenoxyphenyl)methyl]piperazin-1-yl]ethoxy]ethanol;dihydrochloride
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	IC50: 1.8 μM (CCR8)[1]
ln Vitro	With an IC50 value of 1.8 μM, ZK 756326 inhibits the binding of the CCR8 ligand I-309 (CCL1). ZK 756326 is a complete agonist of CCR8, causing a dose-responsive rise in intracellular calcium and cross-desensitizing the response. To find out if ZK 756326's interaction is unique to CCR8, binding competition tests are run on a number of different G-protein-coupled receptors. In these tests, the inhibitory effect of ZK 756326 at 50 μM on radiolabeled ligand binding is examined. ZK 756326 exhibits >28 fold selectivity for CCR8 at this concentration when compared to 26 other GPCRs, all of which have IC50 values greater than 50 μM. ZK 756326 has reduced selectivity when evaluated against the adrenergic receptor α2A, the serotonergic receptors 5-HT1A, 5-HT2B, 5-HT2C, 5-HT5A, and 5-HT6, with IC50 values of 5.4, 4,4, 34.8, 16, 5.9, and <20 μM (at 20 μM 65% inhibition), respectively. Since the chemical does not exhibit any agonist activity in a GTPγS binding experiment when tested at dosages up to 10 μM on the representative receptor 5-HT1A, it is unlikely to be an agonist on these biogenic amine receptors[1].
References	[1]. Identification and characterization of a potent, selective nonpeptide agonist of the CC chemokine receptor CCR8. Mol Pharmacol. 2006 Jan;69(1):309-16.
Additional Infomation	See also: ZK 756326 (annotation moved to).

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.8054 mL	14.0268 mL	28.0536 mL
	5 mM	0.5611 mL	2.8054 mL	5.6107 mL
	10 mM	0.2805 mL	1.4027 mL	2.8054 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
