Physicochemical Properties
| Molecular Formula | C18H20CLF3N2O4S2 |
| Molecular Weight | 484.94 |
| Exact Mass | 484.05 |
| CAS # | 1781835-02-6 |
| PubChem CID | 25186563 |
| Appearance | Typically exists as solid at room temperature |
| Hydrogen Bond Donor Count | 3 |
| Hydrogen Bond Acceptor Count | 9 |
| Rotatable Bond Count | 5 |
| Heavy Atom Count | 30 |
| Complexity | 747 |
| Defined Atom Stereocenter Count | 0 |
| InChi Key | YLOYHLUHXQJNGO-UHFFFAOYSA-N |
| InChi Code | InChI=1S/C18H19F3N2O4S2.ClH/c19-18(20,21)16-7-6-15(28(24,25)14-4-2-1-3-5-14)12-17(16)29(26,27)23-13-8-10-22-11-9-13;/h1-7,12-13,22-23H,8-11H2;1H |

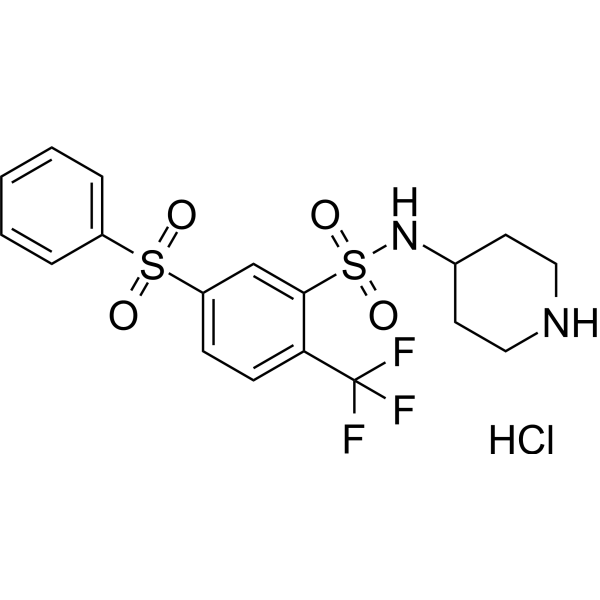

| Chemical Name | 5-(benzenesulfonyl)-N-piperidin-4-yl-2-(trifluoromethyl)benzenesulfonamide;hydrochloride |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| Targets | IC50: 0.5 μM (sFRP-1)[1] |
| ln Vitro | WAY-316606 has an EC50 of 0.65 μM for Wnt-luciferase activity in U2-OS cells[1]. WAY-316606 binds to the secreted frizzled-related protein (sFRP)-1 inhibitor with a KD of 0.08 μM and an EC50 of 0.65 μM for inhibiting sFRP-1. WAY-316606 also binds to sFRP-2, although the intensity is more than 10-fold weaker than the KD of 1 μM. Using a fluorescence polarization binding assay using a fluorescent probe compound and purified human sFRP-1 protein in a competitive binding format, the IC50 of WAY-316606 is 0.5 μM[2]. |
| ln Vivo | WAY-316606 increases bone formation when tested in the neonatal mouse calvaria assay. WAY-316606 increases total bone area by up to 60% in a dose-dependent manner with an EC50 of approximately 1 nM. WAY-316606 has good water solubility, moderate to low inhibitory activity against cytochrome p450 isozymes (3A4, 2D6, 2C9), and good stability in rat and human liver microsomes (t1/2>60 minutes in each species)[1]. WAY-316606 exhibits a high plasma clearance (77 mL/min/kg, greater than hepatic blood flow) in female Sprague-Dawley rats following a single intravenous bolus dose (2 mg/kg), which results in a rapid decline in drug exposure in plasma regardless of route of administration[2]. |
| References |
[1].Modulation of Wnt signaling through inhibition of secreted frizzled-related protein I (sFRP-1) with N-substituted piperidinyl diphenylsulfonyl sulfonamides. J Med Chem. 2009 Jan 8;52(1):105-16. |
Solubility Data
| Solubility (In Vitro) | Typically soluble in DMSO (e.g. 10 mM) |
| Solubility (In Vivo) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 2.0621 mL | 10.3106 mL | 20.6211 mL | |
| 5 mM | 0.4124 mL | 2.0621 mL | 4.1242 mL | |
| 10 mM | 0.2062 mL | 1.0311 mL | 2.0621 mL |
