UPF-523 (AIDA) is a rigid (carboxyphenyl) glycine analogue and a potent and specific antagonist of group I metabotropic glutamate receptor (mGlu1a) with IC50 of 214 μM. However, UPF-523 has no effect on group II (mGlu2), group III (mGlu4) receptors and ionotropic glutamate receptors. UPF-523 may be used for studying acute arthritis.

Physicochemical Properties

Molecular Formula	C11H11NO4
Molecular Weight	221.21
Exact Mass	221.069
CAS #	168560-79-0
PubChem CID	2071
Appearance	White to off-white solid powder
Density	1.481 g/cm3
Boiling Point	470.4ºC at 760 mmHg
Flash Point	238.3ºC
Vapour Pressure	1.19E-09mmHg at 25°C
LogP	1.269
Hydrogen Bond Donor Count	3
Hydrogen Bond Acceptor Count	5
Rotatable Bond Count	2
Heavy Atom Count	16
Complexity	330
Defined Atom Stereocenter Count	0
InChi Key	LSTPKMWNRWCNLS-UHFFFAOYSA-N
InChi Code	InChI=1S/C11H11NO4/c12-11(10(15)16)4-3-6-5-7(9(13)14)1-2-8(6)11/h1-2,5H,3-4,12H2,(H,13,14)(H,15,16)

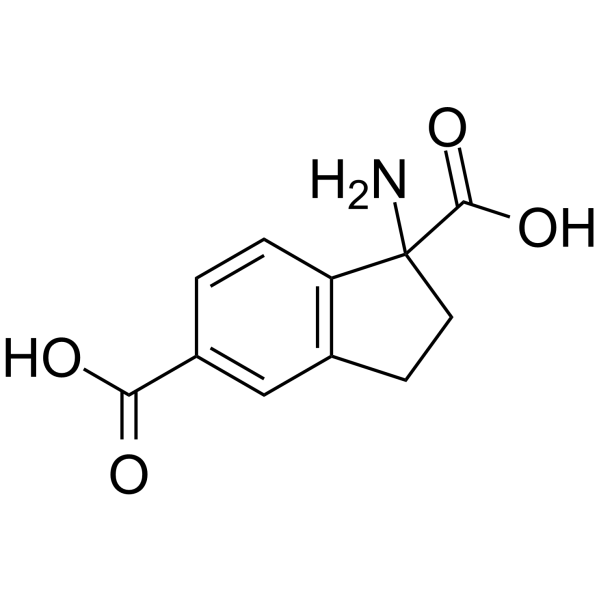

Chemical Name	1-amino-2,3-dihydroindene-1,5-dicarboxylic acid
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	mGluR1a 214 μM (IC50)
ln Vivo	The final concentration of UPF-523 (0.18 mg/kg; ip; 0.5 ml per 100 g) is 100–150 mM, which is less than the IC50 of 214 mM[1].
Animal Protocol	Animal/Disease Models: Naive male hooded Lister rats (320– 350 g)[1] Doses: 0.18 mg/kg Route of Administration: Ip; 0.5 ml per 100 g Experimental Results: demonstrated no gross motor abnormalities and normal righting reflexes.
References	[1]. Class I mGlu receptor antagonist 1-aminoindan-1,5-dicarboxylic acid blocks contextual but not cue conditioning in rats. Eur J Pharmacol. 1997;326(2-3):105-108. [2]. The Role of Type 1 Metabotropic Glutamate Receptors in the Generation of Dorsal Root Reflexes Induced by Acute Arthritis or the Spinal Infusion of 4-Aminopyridine in the Anesthetized Rat. J Pain. 2000;1(2):151-161.

Solubility Data

Solubility (In Vitro)

DMSO: 9.52 mg/mL (43.04 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	4.5206 mL	22.6030 mL	45.2059 mL
	5 mM	0.9041 mL	4.5206 mL	9.0412 mL
	10 mM	0.4521 mL	2.2603 mL	4.5206 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
