Physicochemical Properties
| Molecular Formula | C19H17N2S+.C7H7O3S- |
| Molecular Weight | 476.61036 |
| Exact Mass | 476.122 |
| CAS # | 107091-89-4 |
| PubChem CID | 6438345 |
| Appearance | Pink to red solid powder |
| Melting Point | 270ºC (dec.)(lit.) |
| LogP | 5.307 |
| Hydrogen Bond Donor Count | 0 |
| Hydrogen Bond Acceptor Count | 5 |
| Rotatable Bond Count | 1 |
| Heavy Atom Count | 33 |
| Complexity | 628 |
| Defined Atom Stereocenter Count | 0 |
| SMILES | CC1=CC=C(C=C1)S(=O)(=O)[O-].CN\1C2=CC=CC=C2S/C1=C\C3=CC=[N+](C4=CC=CC=C34)C |
| InChi Key | ACOJCCLIDPZYJC-UHFFFAOYSA-M |
| InChi Code | InChI=1S/C19H17N2S.C7H8O3S/c1-20-12-11-14(15-7-3-4-8-16(15)20)13-19-21(2)17-9-5-6-10-18(17)22-19;1-6-2-4-7(5-3-6)11(8,9)10/h3-13H,1-2H3;2-5H,1H3,(H,8,9,10)/q+1;/p-1 |

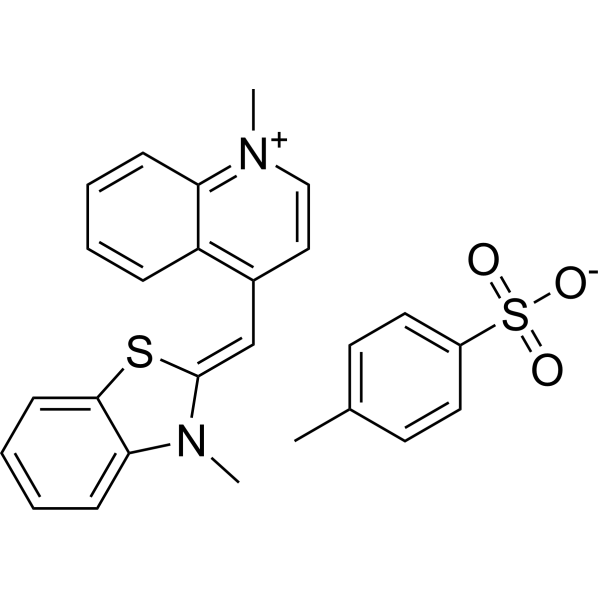

| Chemical Name | 4-methylbenzenesulfonate;(2Z)-3-methyl-2-[(1-methylquinolin-1-ium-4-yl)methylidene]-1,3-benzothiazole |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment (e.g. under nitrogen), avoid exposure to moisture and light. |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| References |
[1]. Thiazole Orange: A New Dye for Reticulocyte Analysis. cytometry 7:508-517 (1986). [2]. Design of thiazole orange oligonucleotide probes for detection of DNA and RNA by fluorescence and duplex melting. Org Biomol Chem. 2019 Jun 28; 17(24): 5943–5950. [3]. DNA Electrophoresis Using Thiazole Orange Instead of Ethidium Bromide or Alternative Dyes. J Vis Exp. 2019 Mar 31;(145). |
| Additional Infomation | Thiazole orange is a cyanine dye comprising the thiazole orange cation [1-methyl-4-[(3-methyl-1,3-benzothiazol-2(3H)-ylidene)methyl]quinolinium] with the p-tosylate counterion. It has a role as a fluorochrome. It contains a thiazole orange cation. |
Solubility Data
| Solubility (In Vitro) |
MEOH : 25 mg/mL (~52.45 mM) DMSO : ~25 mg/mL (~52.45 mM) H2O : < 0.1 mg/mL |
| Solubility (In Vivo) |
Solubility in Formulation 1: ≥ 1.25 mg/mL (2.62 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 12.5 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 1.25 mg/mL (2.62 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 12.5 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 2.0982 mL | 10.4908 mL | 20.9815 mL | |
| 5 mM | 0.4196 mL | 2.0982 mL | 4.1963 mL | |
| 10 mM | 0.2098 mL | 1.0491 mL | 2.0982 mL |
