TGP-377/421 (Targapre-miR-377/421) is a potent inhibitor of miR-377 and miR-421, binding to their functional sites.

Physicochemical Properties

Molecular Formula	C20H16N6
Molecular Weight	340.38
Exact Mass	340.14
Elemental Analysis	C, 70.57; H, 4.74; N, 24.69
CAS #	16752-89-9
PubChem CID	708725
Appearance	Light yellow to brown solid powder
LogP	3
Hydrogen Bond Donor Count	4
Hydrogen Bond Acceptor Count	4
Rotatable Bond Count	2
Heavy Atom Count	26
Complexity	459
Defined Atom Stereocenter Count	0
InChi Key	AQEJANNNADGRSY-UHFFFAOYSA-N
InChi Code	InChI=1S/C20H16N6/c21-13-4-6-15-17(9-13)25-19(23-15)11-2-1-3-12(8-11)20-24-16-7-5-14(22)10-18(16)26-20/h1-10H,21-22H2,(H,23,25)(H,24,26)

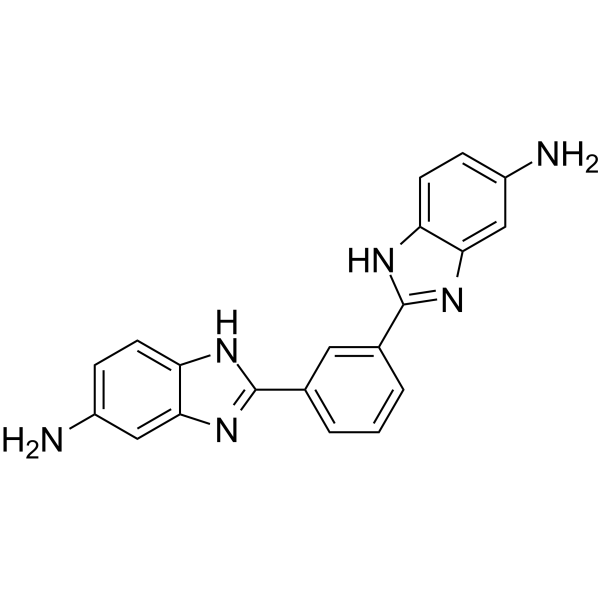

Chemical Name	2-[3-(6-amino-1H-benzimidazol-2-yl)phenyl]-3H-benzimidazol-5-amine
Synonyms	TGP-377421; TGP 377421; TGP377421; TGP-377/421; TGP 377/421; TGP377/421; Targapre-miR-377/421; Targapre-miR377/421; Targapre-miR 377/421;
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Solubility Data

Solubility (In Vitro)

DMSO : ~66.67 mg/mL (~195.87 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (7.34 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (7.34 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.9379 mL	14.6895 mL	29.3789 mL
	5 mM	0.5876 mL	2.9379 mL	5.8758 mL
	10 mM	0.2938 mL	1.4689 mL	2.9379 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
