Physicochemical Properties
| Molecular Formula | C₁₉H₂₇N₄NAO₉S₄ |
| Molecular Weight | 606.69 |
| Exact Mass | 606.056 |
| CAS # | 325143-98-4 |
| PubChem CID | 71571496 |
| Appearance | White to yellow solid powder |
| LogP | 1.773 |
| Hydrogen Bond Donor Count | 3 |
| Hydrogen Bond Acceptor Count | 12 |
| Rotatable Bond Count | 15 |
| Heavy Atom Count | 37 |
| Complexity | 981 |
| Defined Atom Stereocenter Count | 3 |

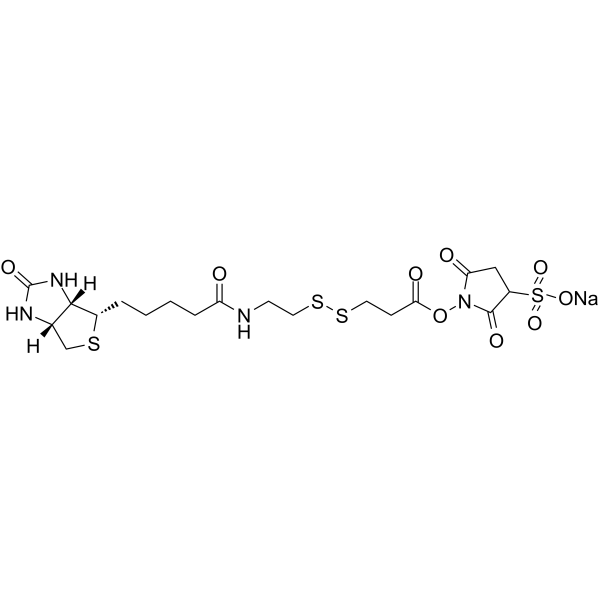

| SMILES | C1[C@H]2[C@@H]([C@@H](S1)CCCCC(=O)NCCSSCCC(=O)ON3C(=O)CC(C3=O)S(=O)(=O)[O-])NC(=O)N2.[Na+] |
| InChi Key | IBKZNJXGCYVTBZ-IDBHZBAZSA-M |
| InChi Code | InChI=1S/C19H28N4O9S4.Na/c24-14(4-2-1-3-12-17-11(10-33-12)21-19(28)22-17)20-6-8-35-34-7-5-16(26)32-23-15(25)9-13(18(23)27)36(29,30)31;/h11-13,17H,1-10H2,(H,20,24)(H2,21,22,28)(H,29,30,31);/q;+1/p-1/t11-,12-,13?,17-;/m0./s1 |
| Chemical Name | sodium;1-[3-[2-[5-[(3aS,4S,6aR)-2-oxo-1,3,3a,4,6,6a-hexahydrothieno[3,4-d]imidazol-4-yl]pentanoylamino]ethyldisulfanyl]propanoyloxy]-2,5-dioxopyrrolidine-3-sulfonate |
| Synonyms | SulfoNHSSSBiotin sodium; Sulfo NHS SS Biotin sodium |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment (e.g. under nitrogen), avoid exposure to moisture and light. |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| ln Vitro | Sulfo-NHS-SS-biotin is a reagent for marking cell surfaces. The reagent has a negative charge and is incapable of penetrating the cell membrane [1]. Primary amines (NH2), such as the amino termini of polypeptides or lysine side chains, react with sulfo-NHS-SS-biotin [1]. The sulfonic acid group on sulfo-NHS-SS-Biotin keeps it from passing through cell membranes. The release of biotinylated proteins from streptavidin affinity columns is made possible by the cleavable spacer arm of the Thr group [1]. The monolayer grown cells were rinsed with ice-cold PBS before being treated with 1 mg/ml of sulfo-NHS-SS-biotin for 15 minutes. 100 mM glycine in PBS was used to stop the biotinylation processes. Cell extracts were made in RIPA buffer with a protease inhibitor cocktail after being cleaned with PBS. Proteins on biotinylated membranes are precipitated using streptavidin-agarose and then eluted using SDS sample buffer [2]. |
| References |
[1]. Phagocytosis in Dictyostelium discoideum is inhibited by antibodies directed primarily against common carbohydrate epitopes of a major cell-surface plasma membrane glycoprotein.Exp Cell Res. 1989 Mar;181(1):11-26. [2]. Cell signaling by urokinase-type plasminogen activator receptor induces stem cell-like properties in breast cancer cells. Cancer Res. 2010 Nov 1;70(21):8948-58. |
Solubility Data
| Solubility (In Vitro) | DMSO : ~125 mg/mL (~206.04 mM) |
| Solubility (In Vivo) |
Solubility in Formulation 1: ≥ 2.08 mg/mL (3.43 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.08 mg/mL (3.43 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.08 mg/mL (3.43 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 1.6483 mL | 8.2414 mL | 16.4829 mL | |
| 5 mM | 0.3297 mL | 1.6483 mL | 3.2966 mL | |
| 10 mM | 0.1648 mL | 0.8241 mL | 1.6483 mL |
