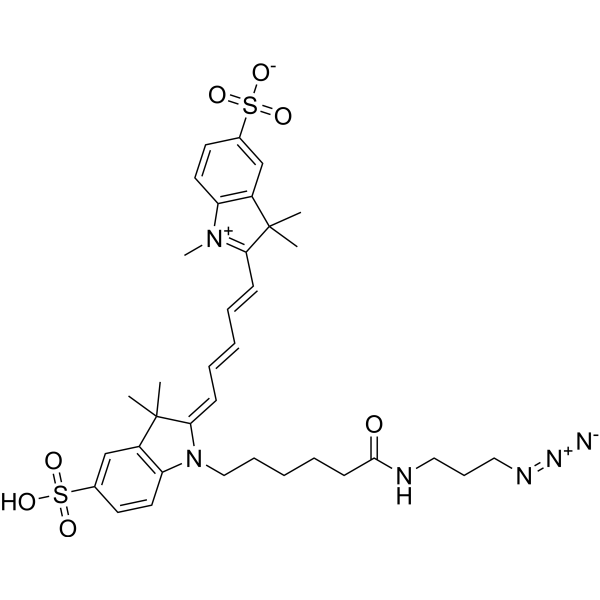

 Chemical Structure.png)
Physicochemical Properties
| Molecular Formula | C35H44N6O7S2 |
| Exact Mass | 746.253 |
| CAS # | 1481447-40-8 |
| PubChem CID | 71777733 |
| Appearance | Brown to dark brown solid powder |
| Hydrogen Bond Donor Count | 1 |
| Hydrogen Bond Acceptor Count | 10 |
| Rotatable Bond Count | 13 |
| Heavy Atom Count | 51 |
| Complexity | 1610 |
| Defined Atom Stereocenter Count | 0 |
| SMILES | CC1(C2=C(C=CC(=C2)S(=O)(=O)[O-])[N+](=C1/C=C/C=C/C=C/3\C(C4=C(N3CCCCCC(=O)NCCCN=[N+]=[N-])C=CC(=C4)S(=O)(=O)[O-])(C)C)C)C.[Na+] |
| InChi Key | OCCGJERHFSRPEN-UHFFFAOYSA-M |
| InChi Code | InChI=1S/C35H44N6O7S2.Na/c1-34(2)27-23-25(49(43,44)45)16-18-29(27)40(5)31(34)13-8-6-9-14-32-35(3,4)28-24-26(50(46,47)48)17-19-30(28)41(32)22-11-7-10-15-33(42)37-20-12-21-38-39-36;/h6,8-9,13-14,16-19,23-24H,7,10-12,15,20-22H2,1-5H3,(H2-,37,42,43,44,45,46,47,48);/q;+1/p-1 |
| Chemical Name | sodium;1-[6-(3-azidopropylamino)-6-oxohexyl]-3,3-dimethyl-2-[5-(1,3,3-trimethyl-5-sulfonatoindol-1-ium-2-yl)penta-2,4-dienylidene]indole-5-sulfonate |
| Synonyms | Sodium;1-[6-(3-azidopropylamino)-6-oxohexyl]-3,3-dimethyl-2-[5-(1,3,3-trimethyl-5-sulfonatoindol-1-ium-2-yl)penta-2,4-dienylidene]indole-5-sulfonate; |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: This product requires protection from light (avoid light exposure) during transportation and storage. |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| Targets | Click chemistry reagent |
| ln Vitro | Nanoparticles are excellent imaging agents for cancer, but variability in chemical structure, racemic mixtures, and addition of heavy metals hinders FDA approval in the United States. We developed a small ultra-red fluorescent protein, named smURFP, to have optical properties similar to the small-molecule Cy5, a heptamethine subclass of cyanine dyes (Ex/Em = 642/670 nm). smURFP has a fluorescence quantum yield of 18% and expresses so well in E. coli, that gram quantities of fluorescent protein are purified from cultures in the laboratory. In this research, the fluorescent protein smURFP was combined with bovine serum albumin into fluorescent protein nanoparticles. These nanoparticles are fluorescent with a quantum yield of 17% and 12-14 nm in diameter. The far-red fluorescent protein nanoparticles noninvasively image tumors in living mice via the enhanced permeation and retention (EPR) mechanism. This manuscript describes the use of a new fluorescent protein nanoparticle for in vivo fluorescent imaging. This protein nanoparticle core should prove useful as a biomacromolecular scaffold, which could bear extended chemical modifications for studies, such as the in vivo imaging of fluorescent protein nanoparticles targeted to primary and metastatic cancer, theranostic treatment, and/or dual-modality imaging with positron emission tomography for entire human imaging [1]. |
| Cell Assay | Cell imaging with the fluorescent protein nanoparticles A549 cancer cells were seeded in 24-well plate and cultured for 24 h at 37 °C. The cells were incubated with 1 μM fluorescent protein nanoparticles and after 24 h, the cells were washed three times with 1x PBS, pH 7.4 and stained with DAPI. The cells were imaged with EVOS fluorescence microscope with a Cy5 LED cube (Ex/Em: 628(40)/692(40) nm) [1]. |
| Animal Protocol |
Noninvasive fluorescence imaging of A549 tumor xenograft in vivo |
| References |
[1]. Small ultra-red fluorescent protein nanoparticles as exogenous probes for noninvasive tumor imaging in vivo. Int J Biol Macromol. 2020 Jun 15;153:100-106. |
Solubility Data
| Solubility (In Vitro) | DMSO: 125 mg/mL (172.44 mM) |
| Solubility (In Vivo) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently. (Please use freshly prepared in vivo formulations for optimal results.) |
