(±)-Stylopine (Tetrahydrocoptisine) HCl is an alkaloid compound extracted from the tubers of Corydalis plants. It has anti~inflammatory and anti-parasitic activities.

Physicochemical Properties

Molecular Formula	C19H18CLNO4
Molecular Weight	359.80
Exact Mass	359.092
CAS #	96087-21-7
Related CAS #	(±)-Stylopine;4312-32-7;(-)-Stylopine;84-39-9; 84-39-9 (S-isomer); 4312-32-7 (racemic); 7461-02-1 (racemic)
PubChem CID	131864060
Appearance	Typically exists as white to off-white solids at room temperature
Source	Corydalis tubers
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	5
Rotatable Bond Count	0
Heavy Atom Count	25
Complexity	502
Defined Atom Stereocenter Count	0
SMILES	Cl.O1COC2C1=CC1CCN3CC4C(CC3C=1C=2)=CC=C1C=4OCO1
InChi Key	WZUQSTMUNWBERD-UHFFFAOYSA-N
InChi Code	InChI=1S/C19H17NO4.ClH/c1-2-16-19(24-10-21-16)14-8-20-4-3-12-6-17-18(23-9-22-17)7-13(12)15(20)5-11(1)14;/h1-2,6-7,15H,3-5,8-10H2;1H

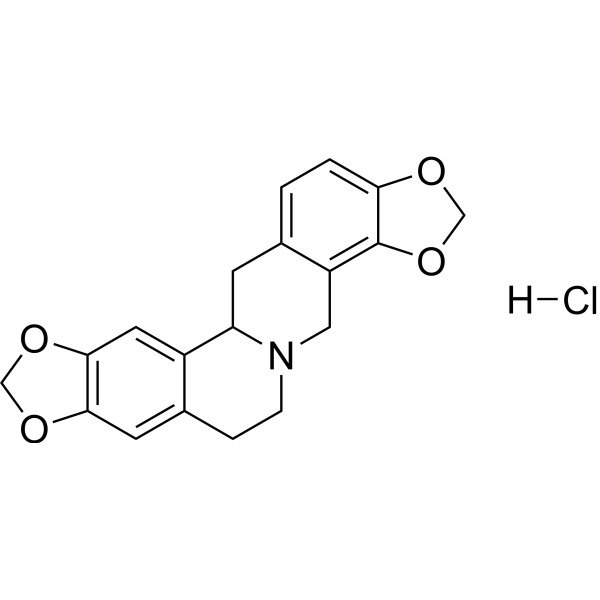

Chemical Name	5,7,17,19-tetraoxa-13-azahexacyclo[11.11.0.02,10.04,8.015,23.016,20]tetracosa-2,4(8),9,15(23),16(20),21-hexaene;hydrochloride
Synonyms	Stylopine hydrochloride; 96087-21-7; 5,7,17,19-tetraoxa-13-azahexacyclo[11.11.0.02,10.04,8.015,23.016,20]tetracosa-2,4(8),9,15(23),16(20),21-hexaene;hydrochloride; ( inverted exclamation markA)-Stylopine (hydrochloride); 6,7,12b,13-Tetrahydro-4H-[1,3]dioxolo[4',5':7,8]isoquinolino[3,2-a][1,3]dioxolo[4,5-g]isoquinoline hydrochloride; DL-Stylopine (hydrochloride); HY-N0924A; AKOS040758819;
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment (e.g. under nitrogen), avoid exposure to moisture and light.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	Natural alkaloid; anti-inflammatory; anti-parasitic
ln Vitro	Tetrahydrocoptisine (THC) significantly inhibited LPS-induced TNF-α, interleukin-6(IL-6) and nitric oxide (NO) production. THC inhibited the production of TNF-α and IL-6 by down-regulating LPS-induced IL-6 and TNF-α mRNA expression. Furthermore, it attenuated the phosphorylation of p38 mitogen-activated protein kinase (p38MAPK) and phosphorylation of extracellular signal-regulated kinase1/2 (ERK1/2) as well as the expression of nuclear factor kappa B(NF-κB), in a concentration-dependent manner. Taken together, our data suggest that THC is an active anti-inflammatory constituent by inhibition of TNF-α, IL-6 and NO production possibly via down-regulation of NF-κB activation, phospho-ERK1/2 and phospho-p38MAPK signal pathways[1].
ln Vivo	The extracts or constituents from Corydalis impatiens are known to have many pharmacological activities. Tetrahydrocoptisine (THC), a protoberberine compound from Corydalis impatiens, was found to possess a potent anti-inflammatory effect in different acute or chronic inflammation model animals. Pretreatment with THC (i.p.) inhibited the paw and ear edema in the carrageenan-induced paw edema assay and xylene-induced ear edema assay, respectively. In the lipopolysaccharide (LPS)-induced systemic inflammation model, THC significantly inhibited serum tumor necrosis factor-alpha (TNF-α) release in mice [1]. Excessive alcohol consumption can lead to gastric ulcer and the present work was aimed to examine the protective effect of tetrahydrocoptisine (THC) in the model of ethanol-induced gastric ulcer in mice. Fasted mice treated with ethanol 75% (0.5ml/100g) were pre-treated with THC (10 or 20mg/kg, ip), cimetidine (100mg/kg, ip) or saline in different experimental sets for a period of 3days, and animals were euthanized 4h after ethanol ingestion. Gross and microscopic lesions, immunological and biochemical parameters were taken into consideration. The results showed that ethanol induced gastric damage, improving nitric oxide (NO) level, increased pro-inflammatory cytokine (TNF-α and IL-6) levels and myeloperoxidase (MPO) activity, as well as the expression of nuclear factor-κB (NF-κB) in the ethanol group. Pretreatment of THC at doses of 10 and 20mg/kg bodyweight significantly attenuated the gastric lesions as compared to the ethanol group. These results suggest that the gastroprotective activity of THC is attributed to reducing NO production and adjusting the pro-inflammatory cytokine, inhibited neutrophil accumulation and NF-κB expression[2].
Enzyme Assay	Assay of myeloperoxidase in gastric tissue[2] Myeloperoxidase, an enzyme found primarily in neutrophil azurophilic granules, has been used extensively as a biochemical marker for granulocyte infiltration into various tissues, including the gastrointestinal tract (Costa et al., 2013, Krawisz et al., 1984). MPO activity was determined using an MPO activity measurement kit by adding 0.2 ml of o-dianisidine hydrochloride and 0.0005% hydrogen peroxide to 4 ml buffer containing 0.2 ml homogenates. MPO activity was assayed at room temperature by measuring the increase in absorbance at 460 nm due to the fluorescent product oxidized by the H2O2-generated redox intermediate. MPO activities were expressed as units per gram of tissue. Cytokine evaluations in gastric tissue[2] The cytokine levels of IL-6 and TNF-α in gastric tissue were evaluated using ELISA kits according to the manufacturer's instructions. Supernatant of homogenates or cytokine standards (100 μl) were respectively loaded into each well and then followed with biotin conjugated secondary antibodies. To obtain color reaction, streptavidin–HRP and substrate solution were added. The absorbance was measured at 450 nm with an ELISA reader. A standard curve was run on each assay plate using recombinant IL-6 and TNF-α in serial dilution. The results were expressed pg/mg tissue. Determination of NO level in gastric tissue[2] The level of nitric oxide in the gastric tissue was evaluated as total nitrate/nitrite using Griess reagent (Green et al., 1982) and the operational processes were measured in accordance with the NO kit instructions. Briefly, 50 μl of tissue supernatant was added to 50 μl Griess reagent [0.1% N-(1-naphthyl) ethylenediamine dihydrochloride, 1% sulphanilamide and 2.5% H3PO4] and mixed. After incubation at room temperature for 10 min, the absorbance was measured at 540 nm. The results were expressed as μmol/g protein. Cytokine evaluations in serum[2] The levels of cytokines (IL-6 and TNF-α) in the serum were analyzed by enzyme-linked immunosorbent assay using ELISA kits for rats according to the manufacturer's instructions. The results were expressed as pg/ml serum.
Animal Protocol	Ethanol-induced gastric mucosal damage[2] Mice were randomly divided into five experimental groups, each containing ten animals. The normal and ulcer control groups received vehicle (0.9% saline) throughout the course of the experiments. The prevention groups received (ip) different doses of THC (10 and 20 mg/kg, dissolved in 0.9% saline) and cimetidine (100 mg/kg, reference drug, dissolved in 0.9% saline) respectively for a period of 3 days. After fasting for 24 h prior to the experiment, mice were fed orally with 75% ethanol (0.5 ml/100 g body weight) to induce the acute ulcer, while the normal group received water only (Mei et al., 2012). Four hours after induction, blood samples were collected from the retro-orbital plexus of each animal and were then centrifuged for 10 min at 2500 g to obtain clear sera which were stored at − 80 °C before use (Choi et al., 2010). After the mice were euthanized, the stomachs were rapidly removed, opened along the greater curvature and rinsed with ice-cold saline to remove the gastric contents and blood clots in order to assess the extent of gastric damage. Thereafter, each stomach was dichotomised, with one moiety of stomach immersed in 10% formaldehyde for histological evaluation and gastric tissue from the other moiety stored at − 80 °C for biochemical determinations.[2] Determination of gastric ulcer index[2] The degree of gastric mucosal damage was evaluated from digital pictures, and rated for gross pathology according to the ulcer score scales as previously described (Salga et al., 2012). The lesions were scored as follows: 0: no lesions; 0.5: slight hyperemia or ≤ 5 petechiae; 1: ≤ 5 erosions ≤ 5 mm in length; 1.5: ≤ 5 erosions ≤ 5 mm in length and many petechiae; 2: 6–10 erosions ≤ 5 mm in length; 2.5: 1–5 erosions > 5 mm in length; 3: 5–10 erosions > 5 mm in length; 3.5: > 10 erosions > 5 mm in length; 4: 1–3 erosions ≤ 5 mm in length and 0.5–1 mm in width; 4.5: 4–5 erosions ≤ 5 mm in length and 0.5–1 mm in width; 5: 1–3 erosions > 5 mm in length and 0.5–1 mm in width; 6: 4 or 5 grade 5 lesions; and 7: ≥ 6 grade 5 lesions; 8: complete lesion of the mucosa with hemorrhage.. The sum of the total scores was divided by the number of animals to obtain the mean ulcer index for each group.
References	[1]. Anti-inflammatory effect of tetrahydrocoptisine from Corydalis impatiens is a function of possible inhibition of TNF-α, IL-6 and NO production in lipopolysaccharide-stimulated peritoneal macrophages through inhibiting NF-κB activation and MAP. [2]. Protective effect of tetrahydrocoptisine against ethanol-induced gastric ulcer in mice. Toxicol Appl Pharmacol. 2013 Oct 1;272(1):21-9.

Solubility Data

Solubility (In Vitro)

DMSO : 2 mg/mL (5.56 mM) H2O : < 0.1 mg/mL

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.7793 mL	13.8966 mL	27.7932 mL
	5 mM	0.5559 mL	2.7793 mL	5.5586 mL
	10 mM	0.2779 mL	1.3897 mL	2.7793 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
