SB-657510 is a selective urotensin II (UII) receptor (UT) antagonist. The Kis for human, monkey, cat, rat and mouse receptors are 61, 17, 30, 65 and 56 nM respectively. SB-657510 exerts anti~inflammatory effects by inhibiting UII-induced upregulation of inflammatory mediators, like adhesion molecules, cytokines and tissue factors in human vascular endothelial cells.

Physicochemical Properties

Molecular Formula	C₁₉H₂₂BRCLN₂O₅S
Molecular Weight	505.81
Exact Mass	504.012
CAS #	474960-44-6
PubChem CID	11272107
Appearance	White to off-white solid powder
LogP	5.095
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	7
Rotatable Bond Count	7
Heavy Atom Count	29
Complexity	637
Defined Atom Stereocenter Count	1
SMILES	CN1CC[C@H](C1)OC2=C(C=CC(=C2)NS(=O)(=O)C3=C(C=C(C(=C3)OC)OC)Br)Cl
InChi Key	KQCZCINJGIRLCD-CYBMUJFWSA-N
InChi Code	InChI=1S/C19H22BrClN2O5S/c1-23-7-6-13(11-23)28-16-8-12(4-5-15(16)21)22-29(24,25)19-10-18(27-3)17(26-2)9-14(19)20/h4-5,8-10,13,22H,6-7,11H2,1-3H3/t13-/m1/s1

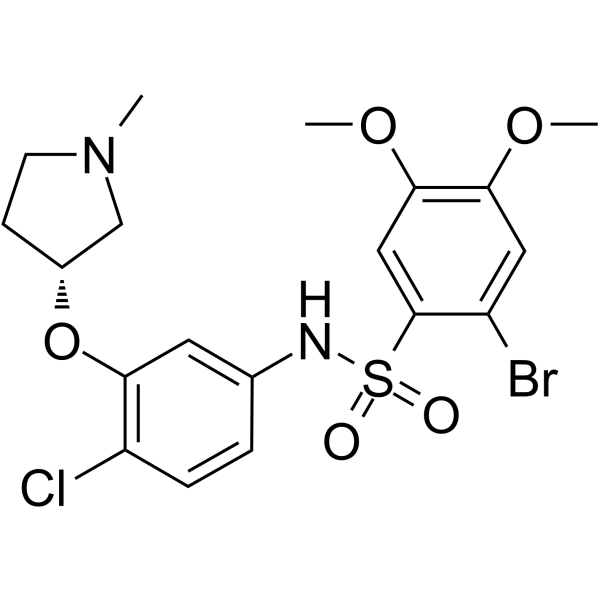

Chemical Name	2-bromo-N-[4-chloro-3-[(3R)-1-methylpyrrolidin-3-yl]oxyphenyl]-4,5-dimethoxybenzenesulfonamide
Synonyms	SB657510; SB-657510
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	The UII-induced increase in adhesion between EA.hy926 and U937 cells is greatly inhibited by SB-657510. In endothelial cells, SB-657510 (1 μM; 0.5-8 hours) inhibits the production of tissue factors produced by UII [1]. With an IC50 of 180 nM, SB-706375 (1-10000 nM) suppresses the [Ca2+]i mobilization mediated by 10 nM hU-II[2].
ln Vivo	SB-657510 reduces the advancement of high-fat diet-induced atherosclerosis and diabetes-related atherosclerosis [1]. Phosphorylated ERK levels were dramatically reduced in the aorta of diabetic mice (male Apoe KO animals) treated with SB-657510 (30 mg/kg/day) [3].
Cell Assay	Western Blot analysis [1] Cell Types: EA.hy926 cells (UII induced) Tested Concentrations: 1 μM Incubation Duration: 0.5, 1, 2, 4, 8 hrs (hours) Experimental Results: Dramatically diminished UII-induced tissue factor protein expression.
References	[1]. Inhibitory Effect of an Urotensin II Receptor Antagonist on Proinflammatory Activation Inducedby Urotensin II in Human Vascular Endothelial Cells. Biomol Ther (Seoul). 2013 Jul 30;21(4):277-83. [2]. Palosuran inhibits binding to primate UT receptors in cell membranes but demonstrates differential activity in intact cells and vascular tissues. Br J Pharmacol. 2008 Oct;155(3):374-86. [3]. Urotensin II receptor antagonism confers vasoprotective effects in diabetes associated atherosclerosis: studies in humans and in a mouse model of diabetes. Diabetologia. 2013 May;56(5):1155-65.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~197.70 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.9770 mL	9.8851 mL	19.7703 mL
	5 mM	0.3954 mL	1.9770 mL	3.9541 mL
	10 mM	0.1977 mL	0.9885 mL	1.9770 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
