S2116 is an N-alkylated trans-cyclopropylamine (TCP) analogue and a potent lysine-specific demethylase 1 (LSD1) inhibitor. S2116 increases H3K9 methylation and corresponding H3K27 deacetylation in super-enhancer regions. S2116 inhibits the transcription of NOTCH3 and TAL1 genes, thereby inducing apoptosis in TCP-resistant acute lymphoblastic leukemia T-ALL cells. S2116 significantly delays the growth of T-ALL cells in xenograft mice.

Physicochemical Properties

Molecular Formula	C22H26CLF2N3O2
Molecular Weight	437.91
Exact Mass	437.168
CAS #	2262489-89-2
PubChem CID	141709216
Appearance	Off-white to light yellow solid powder
Hydrogen Bond Donor Count	3
Hydrogen Bond Acceptor Count	6
Rotatable Bond Count	7
Heavy Atom Count	30
Complexity	560
Defined Atom Stereocenter Count	3
SMILES	N([C@@H]1C[C@H]1C1C=C(F)C=C(F)C=1OCC1C=CC=CC=1)CC(N1C[C@@H](N)CC1)=O.Cl
InChi Key	URJCALSITIJIDU-AXKMXRCYSA-N
InChi Code	InChI=1S/C22H25F2N3O2.ClH/c23-15-8-18(22(19(24)9-15)29-13-14-4-2-1-3-5-14)17-10-20(17)26-11-21(28)27-7-6-16(25)12-27;/h1-5,8-9,16-17,20,26H,6-7,10-13,25H2;1H/t16-,17-,20+;/m0./s1

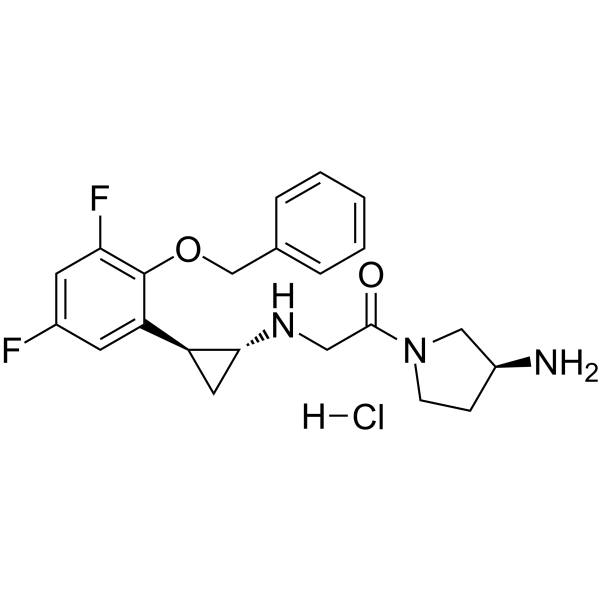

Chemical Name	1-[(3S)-3-aminopyrrolidin-1-yl]-2-[[(1R,2S)-2-(3,5-difluoro-2-phenylmethoxyphenyl)cyclopropyl]amino]ethanone;hydrochloride
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	LSD1[1]
ln Vitro	S2116 exhibits exceptional efficacy against T-ALL cell lines, as evidenced by IC50 values ranging from 1.1 µM for human T-ALL cell lines CEM to 6.8 µM for MOLT4[1]. S2116 (4–20 µM; 72 hours) inhibits normal T-cells that have been stimulated by mitogens in a modest way[1]. In T-ALL cells, S2116 (4–8 µM; 24 hours) causes apoptosis and suppresses the production of the proteins TAL1 and NOTCH3[1].
ln Vivo	The subcutaneous tumors treated with S2116 (50 mg/kg; IP; three times a week; for 28 days) shrink to less than 20% of the untreated control's size[1]. AUC of 59.2 μM·h, T1/2 of 3.76 hours, and Cmax of 12.7 μM are recorded for S2116 (50 mg/kg; IP)[1].
Cell Assay	Cell Viability Assay[1] Cell Types: Normal T-lymphocytes Tested Concentrations: 4, 8, 12, 16, 20 µM Incubation Duration: For 72 hrs (hours) Experimental Results: Modestly inhibited mitogen-activated normal T -lymphocytes. Apoptosis Analysis[1] Cell Types: T-cell acute lymphoblastic leukemia (T-ALL) cells Tested Concentrations: 4, 6, 8 µM Incubation Duration: For 24 hrs (hours) Experimental Results: Induced apoptosis, as evidenced by increased annexin-V reactivity on flow cytometry in T-ALL cells in a dose- and time-dependent manner without affecting cell cycle distribution. Western Blot Analysis[1] Cell Types: T-ALL cells Tested Concentrations: 4, 6, 8 µM Incubation Duration: For 24 hrs (hours) Experimental Results: Down-regulated the expression of NOTCH3 and TAL1 proteins in T-ALL cells.
Animal Protocol	Animal/Disease Models: Nonobese diabetic/severe combined immunodeficiency (NOD/SCID) mice with MOLT4 cells[1] Doses: 50 mg/kg Route of Administration: IP; 3 times a week; for 28 days Experimental Results: The size of subcutaneous (sc)tumors diminished to less than 20% of that in the untreated control . Animal/Disease Models: 8weeks old ICR mice[1] Doses: 50 mg/kg (pharmacokinetic/PK Analysis) Route of Administration: IP Experimental Results: Had a T1/2 of 3.76 hrs (hours), a Cmax of 12.7 μM and an AUC of 59.2 μM• h.
References	[1]. Eradication of Central Nervous System Leukemia of T-Cell Origin With a Brain-Permeable LSD1 Inhibitor. Clin Cancer Res. 2019 Mar 1;25(5):1601-1611.

Solubility Data

Solubility (In Vitro)

DMSO : 100 mg/mL (228.36 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.2836 mL	11.4179 mL	22.8357 mL
	5 mM	0.4567 mL	2.2836 mL	4.5671 mL
	10 mM	0.2284 mL	1.1418 mL	2.2836 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
