RuBi-Glutamate hexafluorophosphate sodium is a novel caged glutamate compound based on ruthenium photochemistry. RuBi-Glutamate hexafluorophosphate sodium can be excited at visible wavelengths and releases glutamate after single-photon or two-photon excitation. It has high quantum efficiency and can be used at low concentrations, partially avoiding the blockade of GABAergic transmission by other caged compounds. The two-photon release of RuBi-Glutamate hexafluorophosphate sodium has high spatial resolution and produces excitatory responses with physiological dynamics in single dendritic spines.

Physicochemical Properties

Molecular Formula	C28H32F12N5NA2O4P3RU
Molecular Weight	970.54
Exact Mass	971.031
CAS #	2417096-44-5
PubChem CID	90488860
Appearance	Orange to red solid powder
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	23
Rotatable Bond Count	4
Heavy Atom Count	55
Complexity	324
Defined Atom Stereocenter Count	0

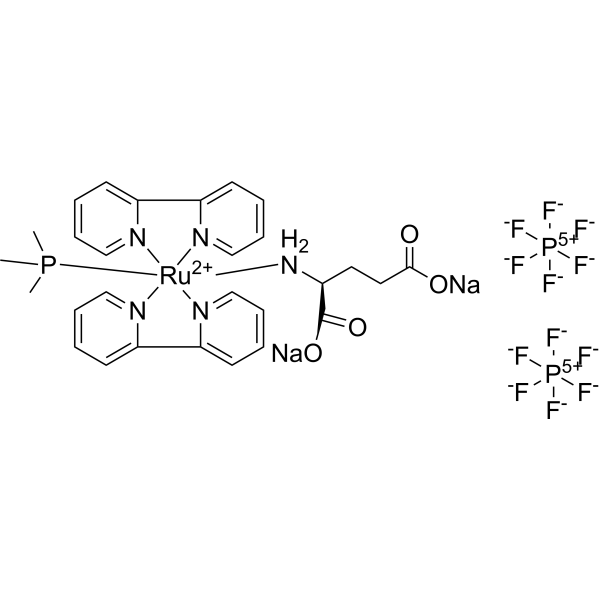

SMILES	[P+5]([F-])([F-])([F-])([F-])([F-])[F-].N([Ru+2]12(N3=CC=CC=C3C3=CC=CC=N13)(N1=CC=CC=C1C1=CC=CC=N21)P(C)(C)C)[C@H](C(=O)[O-])CCC(=O)[O-].[Na+]
InChi Key	SQQVSHWHIPVYSZ-UHFFFAOYSA-L
InChi Code	InChI=1S/2C10H8N2.C5H9NO4.C3H9P.2F6P.2Na.Ru/c2*1-3-7-11-9(5-1)10-6-2-4-8-12-10;6-3(5(9)10)1-2-4(7)8;1-4(2)3;2*1-7(2,3,4,5)6;;;/h2*1-8H;3H,1-2,6H2,(H,7,8)(H,9,10);1-3H3;;;;;/q;;;;2*-1;2*+1;+2/p-2
Chemical Name	disodium;2-aminopentanedioate;2-pyridin-2-ylpyridine;ruthenium(2+);trimethylphosphane;dihexafluorophosphate
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References

[1].RuBi-Glutamate: Two-Photon and Visible-Light Photoactivation of Neurons and Dendritic spines. Front Neural Circuits. 2009 May 27;3:2.

Solubility Data

Solubility (In Vitro)

Typically soluble in DMSO (e.g. 10 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.0304 mL	5.1518 mL	10.3035 mL
	5 mM	0.2061 mL	1.0304 mL	2.0607 mL
	10 mM	0.1030 mL	0.5152 mL	1.0304 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
