Physicochemical Properties

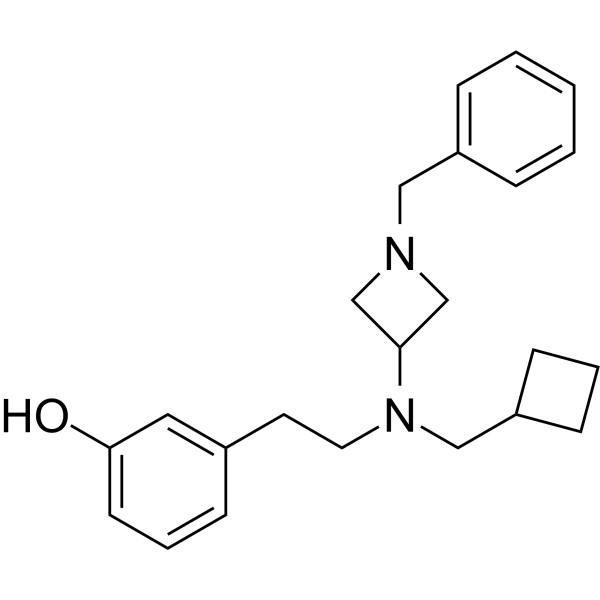

| Molecular Formula | C23H30N2O |
| Molecular Weight | 350.50 |
| Appearance | Typically exists as solid at room temperature |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| Targets | κ Opioid Receptor/KOR 1.1 nM (EC50) |
| ln Vitro | PIPE-3297 (0.5-1 μM) induces myelination and differentiation of oligodendrocyte progenitor cells (OPCs) into oligodendrocytes (OLs)[1]. PIPE-3297 is cardiotoxic, inhibits hERG potassium channels with an inhibitory efficiency of 72% (3 μM), and is unstable in liver microsomes[1]. |
| ln Vivo | PIPE-3297 (30 mg/kg, subcutaneous injection, single dose) increases KOR occupancy in the CNS to 90% and reaches a concentration of 12.5 μM in the brain. No evidence of KOR-mediated motor deficits was found in C57BL/6 mice[1]. PIPE-3297 (30 mg/kg, subcutaneous injection, single dose) induces KOR-dependent OPC differentiation into mature OL cells in C57BL/6 mice[1]. PIPE-3297 (3 and 30 mg/kg, subcutaneous injection, 23 days) improves myelin oligodendrocyte glycoprotein (MOG)-induced autoimmune encephalomyelitis (EAE) in C57BL/6 mice[1]. |
| Cell Assay |
Immunofluorescence[1] Cell Types: OPC Tested Concentrations: 0.5-1 μM Incubation Duration: 72 h Experimental Results: Increased levels of MBPs |
| Animal Protocol |
Animal/Disease Models: MOG induced EAE in C57BL/6 mice[1] Doses: 3 and 30 mg/kg Route of Administration: s.c., daily for 23 days Experimental Results: Ameliorated the EAE. Animal/Disease Models: C57BL/6 mice[1] Doses: 3 and 30 mg/kg Route of Administration: s.c., single dose Experimental Results: Increased levels of KOR and mature OLs, maintained the locomotion ability. |
| References |
[1].Identification and In Vivo Evaluation of Myelination Agent PIPE-3297, a Selective Kappa Opioid Receptor Agonist Devoid of β-Arrestin-2 Recruitment Efficacy. ACS Chem Neurosci. 2024 Feb 7;15(3):685-698. |
Solubility Data
| Solubility (In Vitro) | Typically soluble in DMSO (e.g. 10 mM) |
| Solubility (In Vivo) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 2.8531 mL | 14.2653 mL | 28.5307 mL | |
| 5 mM | 0.5706 mL | 2.8531 mL | 5.7061 mL | |
| 10 mM | 0.2853 mL | 1.4265 mL | 2.8531 mL |
