PEG4-aminooxy-MMAF (Amberstatin; AS269) is a novel and potent ADC linker for the synthesis of ADCT-502, which is an anti-Her2 antibody used to treat breast cancer.
Physicochemical Properties
| Molecular Formula | C47H82N6O12 |
| Molecular Weight | 923.186994075775 |
| Exact Mass | 922.599 |
| CAS # | 1415246-35-3 |
| Related CAS # | 2364345-05-9 (bis);1415246-35-3; |
| PubChem CID | 89283237 |
| Appearance | White to off-white solid powder |
| LogP | 1.2 |
| Hydrogen Bond Donor Count | 4 |
| Hydrogen Bond Acceptor Count | 14 |
| Rotatable Bond Count | 33 |
| Heavy Atom Count | 65 |
| Complexity | 1400 |
| Defined Atom Stereocenter Count | 9 |

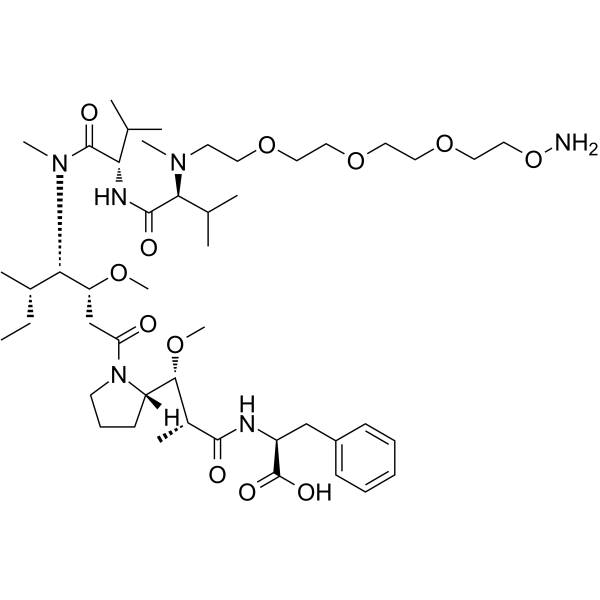

| SMILES | O(C)[C@H]([C@H](C(N[C@H](C(=O)O)CC1C=CC=CC=1)=O)C)[C@@H]1CCCN1C(C[C@H]([C@H]([C@@H](C)CC)N(C)C([C@H](C(C)C)NC([C@H](C(C)C)N(C)CCOCCOCCOCCON)=O)=O)OC)=O |
| InChi Key | OJYZGXVPCDZLCK-KVEFUIBJSA-N |
| InChi Code | InChI=1S/C47H82N6O12/c1-12-33(6)42(52(9)46(57)40(31(2)3)50-45(56)41(32(4)5)51(8)21-22-62-23-24-63-25-26-64-27-28-65-48)38(60-10)30-39(54)53-20-16-19-37(53)43(61-11)34(7)44(55)49-36(47(58)59)29-35-17-14-13-15-18-35/h13-15,17-18,31-34,36-38,40-43H,12,16,19-30,48H2,1-11H3,(H,49,55)(H,50,56)(H,58,59)/t33-,34+,36-,37-,38+,40-,41-,42-,43+/m0/s1 |
| Chemical Name | (2S)-2-[[(2R,3R)-3-[(2S)-1-[(3R,4S,5S)-4-[[(2S)-2-[[(2S)-2-[2-[2-[2-(2-aminooxyethoxy)ethoxy]ethoxy]ethyl-methylamino]-3-methylbutanoyl]amino]-3-methylbutanoyl]-methylamino]-3-methoxy-5-methylheptanoyl]pyrrolidin-2-yl]-3-methoxy-2-methylpropanoyl]amino]-3-phenylpropanoic acid |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: (1). This product requires protection from light (avoid light exposure) during transportation and storage.(2). This product is not stable in solution, please use freshly prepared working solution for optimal results. |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| References |
[1]. Antibody drug conjugates (ADC). Teknisk- naturvetenskaplig fakultet. |
Solubility Data
| Solubility (In Vitro) |
H2O : ≥ 100 mg/mL (~108.32 mM) DMSO : ~100 mg/mL (~108.32 mM) |
| Solubility (In Vivo) |
Solubility in Formulation 1: ≥ 2.5 mg/mL (2.71 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (2.71 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (2.71 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 1.0832 mL | 5.4160 mL | 10.8320 mL | |
| 5 mM | 0.2166 mL | 1.0832 mL | 2.1664 mL | |
| 10 mM | 0.1083 mL | 0.5416 mL | 1.0832 mL |
