PDGFRα kinase inhibitor 1 is a selective inhibitor of type II PDGFRα kinase. The IC50 for inhibiting PDGFRα and PDGFRβ is 132 nM and 6115 nM respectively.

Physicochemical Properties

Molecular Formula	C34H34N8O2
Molecular Weight	586.686166286469
Exact Mass	586.28
CAS #	2209053-93-8
PubChem CID	129318936
Appearance	Light yellow to yellow solid powder
LogP	3.8
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	8
Rotatable Bond Count	11
Heavy Atom Count	44
Complexity	897
Defined Atom Stereocenter Count	0
SMILES	O=C(C1C=NC=CC=1)N(CC1C=CC(C(NC2C=CC(C)=C(C=2)NC2N=CC=C(C3C=NC=CC=3)N=2)=O)=CC=1)CCN(C)C
InChi Key	NWVOHJOHQOHBMB-UHFFFAOYSA-N
InChi Code	InChI=1S/C34H34N8O2/c1-24-8-13-29(20-31(24)40-34-37-17-14-30(39-34)27-6-4-15-35-21-27)38-32(43)26-11-9-25(10-12-26)23-42(19-18-41(2)3)33(44)28-7-5-16-36-22-28/h4-17,20-22H,18-19,23H2,1-3H3,(H,38,43)(H,37,39,40)

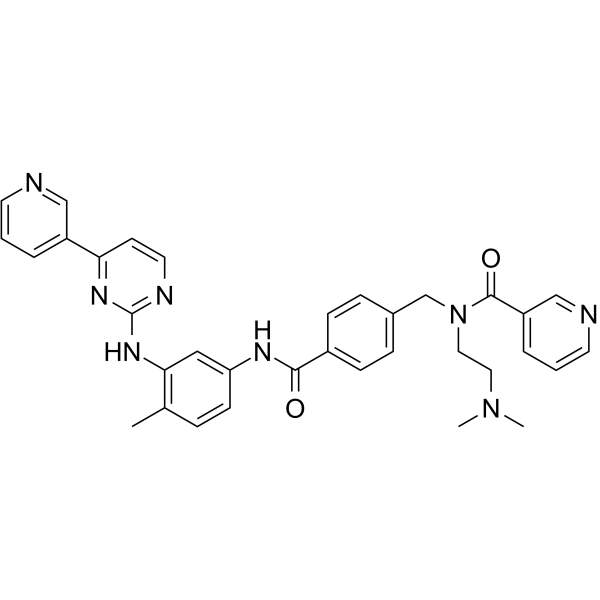

Chemical Name	N-[2-(dimethylamino)ethyl]-N-[[4-[[4-methyl-3-[(4-pyridin-3-ylpyrimidin-2-yl)amino]phenyl]carbamoyl]phenyl]methyl]pyridine-3-carboxamide
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	PDGFRα kinase inhibitor 1 (CHMFL-PDGFR-159, compound 15i) has a mild inhibitory action on DDR1 kinase (IC50: 2462±126 nM) [1].
References	[1]. Discovery of 4-((N-(2-(dimethylamino)ethyl)acrylamido)methyl)-N-(4-methyl-3-((4-(pyridin-3-yl)pyrimidin-2-yl)amino)phenyl)benzamide (CHMFL-PDGFR-159) as a highly selective type II PDGFRα kinase inhibitor for PDGFRα driving chronic eosinophi.

Solubility Data

Solubility (In Vitro)

DMSO : ~260 mg/mL (~443.16 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.17 mg/mL (3.70 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 21.7 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.17 mg/mL (3.70 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 21.7 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.17 mg/mL (3.70 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 21.7 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.7045 mL	8.5224 mL	17.0448 mL
	5 mM	0.3409 mL	1.7045 mL	3.4090 mL
	10 mM	0.1704 mL	0.8522 mL	1.7045 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
