PDE-9 inhibitor can act on neurodegenerative diseases.

Physicochemical Properties

Molecular Formula	C22H27N5O2
Molecular Weight	393.48208
Exact Mass	393.216
CAS #	1082743-70-1
PubChem CID	135886459
Appearance	White to off-white solid powder
Density	1.39
LogP	3.056
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	5
Rotatable Bond Count	4
Heavy Atom Count	29
Complexity	629
Defined Atom Stereocenter Count	2
SMILES	C[C@@H]1CN(C[C@H]1C2=NC3=C(C=NN3C4CCOCC4)C(=O)N2)CC5=CC=CC=C5
InChi Key	RVEJWGYZBXCGGM-DNVCBOLYSA-N
InChi Code	InChI=1S/C22H27N5O2/c1-15-12-26(13-16-5-3-2-4-6-16)14-19(15)20-24-21-18(22(28)25-20)11-23-27(21)17-7-9-29-10-8-17/h2-6,11,15,17,19H,7-10,12-14H2,1H3,(H,24,25,28)/t15-,19-/m1/s1

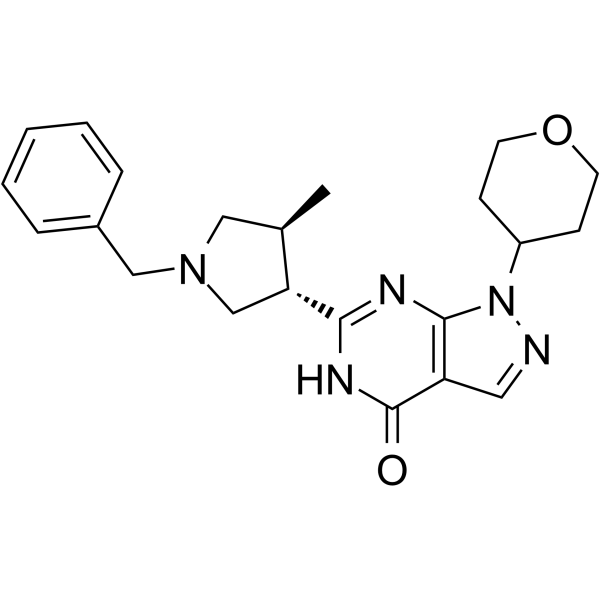

Chemical Name	6-[(3S,4S)-1-benzyl-4-methylpyrrolidin-3-yl]-1-(oxan-4-yl)-5H-pyrazolo[3,4-d]pyrimidin-4-one
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Solubility Data

Solubility (In Vitro)

DMSO : ≥ 100 mg/mL (~254.14 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 3.25 mg/mL (8.26 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 32.5 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 2: ≥ 3.25 mg/mL (8.26 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 32.5 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.5414 mL	12.7071 mL	25.4143 mL
	5 mM	0.5083 mL	2.5414 mL	5.0829 mL
	10 mM	0.2541 mL	1.2707 mL	2.5414 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
