PARPi-FL is a small molecule fluorescent inhibitor of PARP1. PARPi-FL is a selective probe that can be used as an imaging agent to detect glioblastoma in vivo.

Physicochemical Properties

Molecular Formula	C34H32BF3N6O3
Molecular Weight	640.47
Exact Mass	640.258
CAS #	1380359-84-1
PubChem CID	70697686
Appearance	Yellow to orange solid powder
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	8
Rotatable Bond Count	6
Heavy Atom Count	47
Complexity	1430
Defined Atom Stereocenter Count	0
InChi Key	IGUTVNUEFKPBGK-UHFFFAOYSA-N
InChi Code	InChI=1S/C34H32BF3N6O3/c1-21-17-22(2)43-31(21)20-25-9-8-24(44(25)35(43,37)38)10-12-32(45)41-13-15-42(16-14-41)34(47)28-18-23(7-11-29(28)36)19-30-26-5-3-4-6-27(26)33(46)40-39-30/h3-9,11,17-18,20H,10,12-16,19H2,1-2H3,(H,40,46)

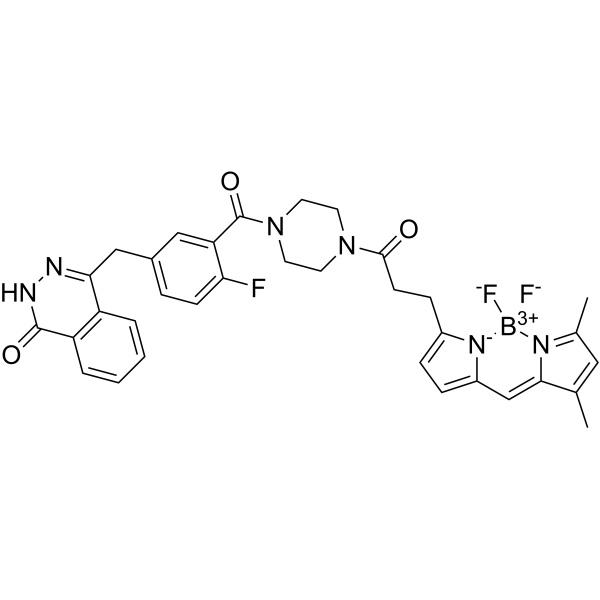

Chemical Name	4-[[3-[4-[3-(2,2-difluoro-10,12-dimethyl-1-aza-3-azonia-2-boranuidatricyclo[7.3.0.03,7]dodeca-3,5,7,9,11-pentaen-4-yl)propanoyl]piperazine-1-carbonyl]-4-fluorophenyl]methyl]-2H-phthalazin-1-one
Synonyms	PARPiFL; PARPi FL; PARPi-FL
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References

[1]. Poly(ADP-ribose) polymerase inhibitors in prostate cancer: a cornerstone in precision oncology. Pharmacogenomics. 2021 Dec;22(18):1237-1250. [2]. PARPi-FL--a fluorescent PARP1 inhibitor for glioblastoma imaging. Neoplasia. 2014 May;16(5):432-40. doi: 10.1016/j.neo.2014.05.005. Epub 2014 Jun 23.

Additional Infomation

Olaparib-bodipy FL is under investigation in clinical trial NCT03085147 (A Dye for the Detection of Cancer of the Tongue and Mouth). Boron-dipyrromethene-modified Olaparib Fluorescent Imaging Agent is a poly (ADP-ribose) polymerase type 1 (PARP1) fluorescence imaging agent based on the PARP1 inhibitor olaparib, in which the cyclopropane group of olaparib is replaced by the green fluorescent dye boron-dipyrromethene (BODIPY) fluorophore (FL), with potential fluorescent imaging activity. Upon administration of the fluorescent PARP1 inhibitor PARPi-FL, the olaparib binding moiety specifically targets and binds to PARP1, which is often overexpressed on cancer cells. Upon fluorescent imaging, the PARP1-expressing cancer cells can be visualized. PARP1, the nuclear enzyme that catalyzes post-translational ADP-ribosylation of nuclear proteins, is activated by single-strand (SS) DNA breaks and overexpressed in certain tumor cells; it plays a key role in DNA repair, tumor cell resistance and survival.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.5614 mL	7.8068 mL	15.6135 mL
	5 mM	0.3123 mL	1.5614 mL	3.1227 mL
	10 mM	0.1561 mL	0.7807 mL	1.5614 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
