Physicochemical Properties
| Molecular Formula | C24H23N7O3S |
| Molecular Weight | 489.55 |
| Exact Mass | 489.158 |
| CAS # | 1404231-34-0 |
| PubChem CID | 73297262 |
| Appearance | Brown to reddish brown solid powder |
| LogP | 3.8 |
| Hydrogen Bond Donor Count | 2 |
| Hydrogen Bond Acceptor Count | 9 |
| Rotatable Bond Count | 4 |
| Heavy Atom Count | 35 |
| Complexity | 785 |
| Defined Atom Stereocenter Count | 0 |
| SMILES | CN(CC1)CCN1C(C=C2)=CC=C2NC3=NC(S/C(C(N4)=O)=C\C5=CC=C([N+]([O-])=O)C=C5)=C4C=N3 |
| InChi Key | PKCHFYZACODWAI-STZFKDTASA-N |
| InChi Code | InChI=1S/C24H23N7O3S/c1-29-10-12-30(13-11-29)18-8-4-17(5-9-18)26-24-25-15-20-23(28-24)35-21(22(32)27-20)14-16-2-6-19(7-3-16)31(33)34/h2-9,14-15H,10-13H2,1H3,(H,27,32)(H,25,26,28)/b21-14- |

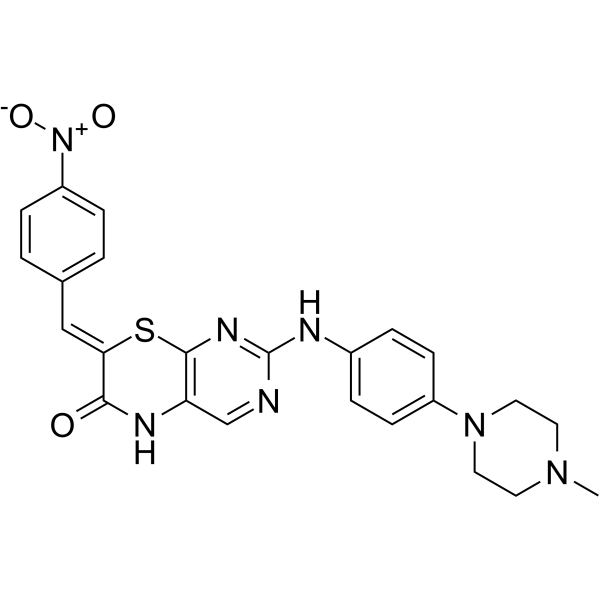

| Chemical Name | (7Z)-2-[4-(4-methylpiperazin-1-yl)anilino]-7-[(4-nitrophenyl)methylidene]-5H-pyrimido[4,5-b][1,4]thiazin-6-one |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: This product requires protection from light (avoid light exposure) during transportation and storage. |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| ln Vitro | PI3Kα/PI3Kδ isomers were inhibited by ON 146040 in biochemical tests (IC50 = 14 and 20 nM, respectively), while PI3Kβ/PI3Kγ isomers (IC50 = 3 and 1 μM, respectively) were not significantly affected. Additionally, it was discovered that ON 146040 inhibited Abl1 and a number of mutant forms of this kinase (IC50<150 nM); however, ON 146040 did not demonstrate any activity against the T315I mutant. The first dual inhibitor of PI3K and BCR-ABL that targets both the STAT3 and STAT5 pathways is ON 146040. By specifically targeting upstream activators such as PI3K alpha and delta isoforms as well as wild-type and mutant BCR-ABL, ON 146040 inhibits the oncogenic activities of STAT3 and STAT5. Blood tumor cells can be effectively killed by ON 146040, with IC50 values ranging from 150 to 1,000 nM. Leukemia and myeloma cells that have been treated with ON 146040 exhibit downregulated STAT3 and STAT5 phosphorylation [1]. |
| References |
[1]. Targeting oncogenic STAT3 and STAT5 signaling with on 146040, a small molecule inhibitor of PI3K α/δ and BCR-ABL. |
Solubility Data
| Solubility (In Vitro) | May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples |
| Solubility (In Vivo) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 2.0427 mL | 10.2135 mL | 20.4269 mL | |
| 5 mM | 0.4085 mL | 2.0427 mL | 4.0854 mL | |
| 10 mM | 0.2043 mL | 1.0213 mL | 2.0427 mL |
