OF-02 is an ionizable lipid that efficiently delivers mRNA in the body.

Physicochemical Properties

Molecular Formula	C84H152N4O6
Molecular Weight	1314.13
Exact Mass	1313.171
CAS #	1883431-67-1
PubChem CID	132594335
Appearance	Colorless to light yellow ointment
LogP	25.2
Hydrogen Bond Donor Count	6
Hydrogen Bond Acceptor Count	8
Rotatable Bond Count	70
Heavy Atom Count	94
Complexity	1670
Defined Atom Stereocenter Count	0
SMILES	CCCCC/C=C\C/C=C\CCCCCCC(O)CN(CC(O)CCCCCC/C=C\C/C=C\CCCCC)CCCCC1NC(=O)C(NC1=O)CCCCN(CC(O)CCCCCC/C=C\C/C=C\CCCCC)CC(O)CCCCCC/C=C\C/C=C\CCCCC
InChi Key	UMSCHHWDFWCONK-RGLFHLPNSA-N
InChi Code	InChI=1S/C84H152N4O6/c1-5-9-13-17-21-25-29-33-37-41-45-49-53-57-65-77(89)73-87(74-78(90)66-58-54-50-46-42-38-34-30-26-22-18-14-10-6-2)71-63-61-69-81-83(93)86-82(84(94)85-81)70-62-64-72-88(75-79(91)67-59-55-51-47-43-39-35-31-27-23-19-15-11-7-3)76-80(92)68-60-56-52-48-44-40-36-32-28-24-20-16-12-8-4/h21-28,33-40,77-82,89-92H,5-20,29-32,41-76H2,1-4H3,(H,85,94)(H,86,93)/b25-21-,26-22-,27-23-,28-24-,37-33-,38-34-,39-35-,40-36-

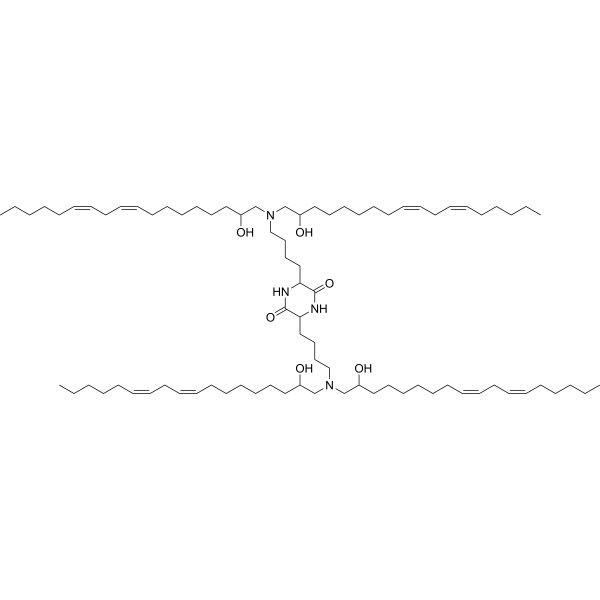

Chemical Name	3,6-bis[4-[bis[(9Z,12Z)-2-hydroxyoctadeca-9,12-dienyl]amino]butyl]piperazine-2,5-dione
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment (e.g. under nitrogen), avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References

[1]. Bioinspired Alkenyl Amino Alcohol Ionizable Lipid Materials for Highly Potent In Vivo mRNA Delivery. Adv Mater. 2016;28(15):2939-2943.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~76.10 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (1.90 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	0.7610 mL	3.8048 mL	7.6096 mL
	5 mM	0.1522 mL	0.7610 mL	1.5219 mL
	10 mM	0.0761 mL	0.3805 mL	0.7610 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
