Nigranoic acid is a natural triterpenoid isolated from Schisandra chinensis with antiviral activity by inhibiting HIV-1 reverse transcriptase. Nigranoic acid exhibits protective effects on brain through PARP/AIF signaling pathway in cerebral ischemia-reperfusion animal model.

Physicochemical Properties

Molecular Formula	C30H46O4
Molecular Weight	470.68384
Exact Mass	470.34
CAS #	39111-07-4
PubChem CID	10814237
Appearance	Off-white to light yellow solid powder
LogP	7.493
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	4
Rotatable Bond Count	9
Heavy Atom Count	34
Complexity	904
Defined Atom Stereocenter Count	8
SMILES	C[C@H](CC/C=C(/C)\C(=O)O)[C@H]1CC[C@@]2([C@@]1(CC[C@]34[C@H]2CC[C@H]([C@]3(C4)CCC(=O)O)C(=C)C)C)C
InChi Key	NJFOSFIPGRXARF-BRTULJEKSA-N
InChi Code	InChI=1S/C30H46O4/c1-19(2)22-10-11-24-28(6)14-12-23(20(3)8-7-9-21(4)26(33)34)27(28,5)16-17-30(24)18-29(22,30)15-13-25(31)32/h9,20,22-24H,1,7-8,10-18H2,2-6H3,(H,31,32)(H,33,34)/b21-9-/t20-,22+,23-,24+,27-,28+,29-,30+/m1/s1

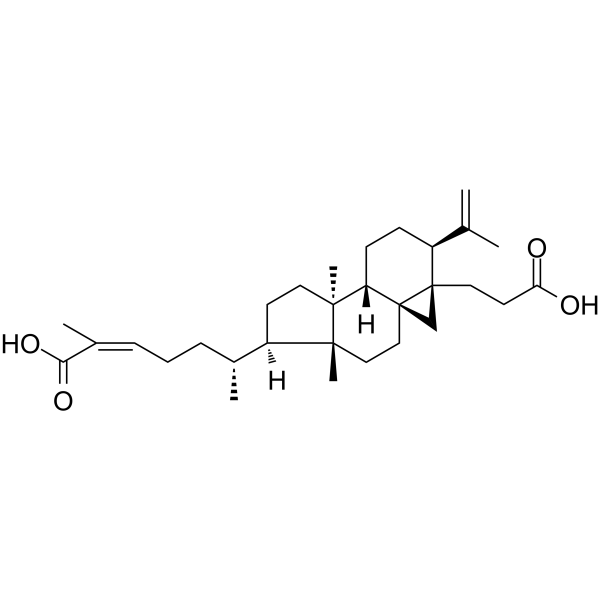

Chemical Name	(Z,6R)-6-[(1S,4R,5R,8S,9S,12S,13R)-13-(2-carboxyethyl)-4,8-dimethyl-12-prop-1-en-2-yl-5-tetracyclo[7.5.0.01,13.04,8]tetradecanyl]-2-methylhept-2-enoic acid
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vivo	Blackpiperic acid has a substantial protective impact on cerebral ischemia-reperfusion injury in rats, by inhibiting the excessive activation of PARP and AIF nuclear translocation and downregulating nerve cell apoptosis [2]. Acetic acid (1 mg/kg; ir; 6 hours and 2 hours before cerebral ischemia) significantly reduced cell apoptosis and the expression levels of AIF protein, PARP protein and AIF mRNA at different time periods [2].
Animal Protocol	Animal/Disease Models: Sprague–Dawley rat (200-300 g), ischemia-reperfusion model [2] Doses: 1 mg/kg Route of Administration: intragastric; 6 hrs (hrs (hours)) and 2 hrs (hrs (hours)) before cerebral ischemia Experimental Results: different time points Cell apoptosis was diminished, and the expression levels of AIF protein, PARP protein, and AIF mRNA were diminished.
References	[1]. Nigranoic acid, a triterpenoid from Schisandra sphaerandra that inhibits HIV-1 reverse transcriptase. J Nat Prod. 1996 May;59(5):525-7. [2]. Protective effects of nigranoic acid on cerebral ischemia-reperfusion injury and its mechanism involving apoptotic signaling pathway. Cell Biochem Biophys. 2015 Jan;71(1):345-51.
Additional Infomation	Nigranoic acid is a tetracyclic triterpenoid that is 3,4-secocycloarta-4(28),24-(Z)-diene substituted by carboxy groups at positions 3 and 26. Isolated from Schisandra henryi and Schisandra propinqua, it exhibits cytotoxic and anti-HIV activities. It has a role as a metabolite, an antineoplastic agent and a HIV-1 reverse transcriptase inhibitor. It is a tetracyclic triterpenoid and a dicarboxylic acid. Nigranoic acid has been reported in Schisandra propinqua, Kadsura heteroclita, and other organisms with data available.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.1246 mL	10.6229 mL	21.2459 mL
	5 mM	0.4249 mL	2.1246 mL	4.2492 mL
	10 mM	0.2125 mL	1.0623 mL	2.1246 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
