Physicochemical Properties
| Molecular Formula | C23H30N6O |
| Molecular Weight | 406.523904323578 |
| Exact Mass | 406.248 |
| CAS # | 1562333-92-9 |
| PubChem CID | 136598218 |
| Appearance | Off-white to light yellow solid powder |
| LogP | 2.9 |
| Hydrogen Bond Donor Count | 3 |
| Hydrogen Bond Acceptor Count | 6 |
| Rotatable Bond Count | 4 |
| Heavy Atom Count | 30 |
| Complexity | 568 |
| Defined Atom Stereocenter Count | 0 |
| SMILES | OC1C=C(C2C=NNC=2)C=CC=1C1=CC=C(N=N1)N(C)C1CC(C)(C)NC(C)(C)C1 |
| InChi Key | XSBJQWNBBMWICJ-UHFFFAOYSA-N |
| InChi Code | InChI=1S/C23H30N6O/c1-22(2)11-17(12-23(3,4)28-22)29(5)21-9-8-19(26-27-21)18-7-6-15(10-20(18)30)16-13-24-25-14-16/h6-10,13-14,17,28,30H,11-12H2,1-5H3,(H,24,25) |

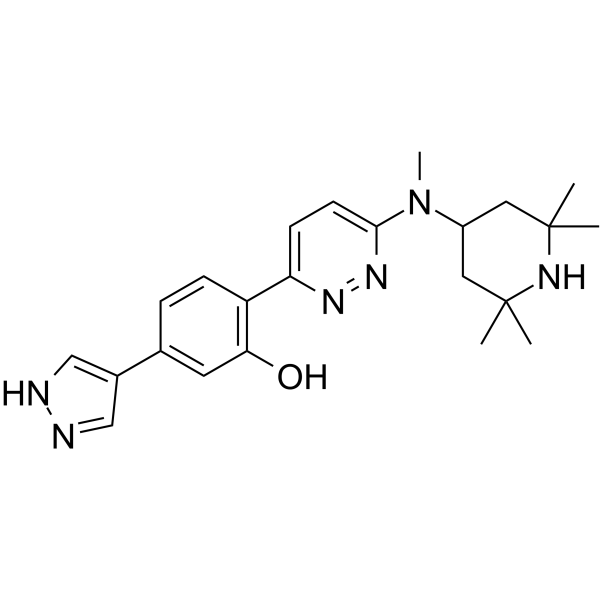

| Chemical Name | 2-[6-[methyl-(2,2,6,6-tetramethylpiperidin-4-yl)amino]pyridazin-3-yl]-5-(1H-pyrazol-4-yl)phenol |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| ln Vitro | The molecular mechanism of action of NVS-SM2 involves stabilizing temporary double-stranded RNA structures that are created by U1 small nuclear ribonucleic acid protein (snRNP) complexes and SMN2 pre-mRNA. Independent of constitutive recognition, the binding affinity of U1 snRNP to the 5' splice site rises in a sequence-selective way [1]. |
| ln Vivo | A mouse model of severe SMA that receives subcutaneous injections of NVS-SM2 (0.1–1 mg/kg) for 30 days has a longer survival rate [2]. Pharmacokinetic analysis demonstrated that NVS-SM2 is easily obtainable in the brain following intravenous and oral (PO) administration in rats and mice. In mice, oral administration of 3 mg/kg results in a Tmax of 3 hours, and NVS-SM2 treatment causes the levels of SMN protein in the mouse brain to increase by 1.5 times [1]. |
| Animal Protocol |
Animal/Disease Models: Severe SMA mice [2] Doses: 0.1 mg/kg and 1 mg/kg Route of Administration: subcutaneous injection; one time/day from day 2 to day 15, then every other day until results on day 30 Experimental Results: Prolonged survival in mouse model of severe SMA. |
| References |
[1]. SMN2 splice modulators enhance U1-pre-mRNA association and rescue SMA mice. Nat Chem Biol. 2015 Jul;11(7):511-7. [2]. Short-duration splice promoting compound enables a tunable mouse model of spinal muscular atrophy. Life Sci Alliance. 2020 Nov 24;4(1):e202000889. |
Solubility Data
| Solubility (In Vitro) | DMSO : ~75 mg/mL (~184.49 mM) |
| Solubility (In Vivo) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 2.4599 mL | 12.2995 mL | 24.5990 mL | |
| 5 mM | 0.4920 mL | 2.4599 mL | 4.9198 mL | |
| 10 mM | 0.2460 mL | 1.2300 mL | 2.4599 mL |
