NU-7200 is a novel and potent DNA-PK inhibitor

Physicochemical Properties

Molecular Formula	C17H17NO4
Molecular Weight	299.32118
Exact Mass	299.115
Elemental Analysis	C, 68.21; H, 5.72; N, 4.68; O, 21.38
CAS #	842122-14-9
PubChem CID	11415324
Appearance	Typically exists as solid at room temperature
Density	1.3±0.1 g/cm3
Boiling Point	515.4±50.0 °C at 760 mmHg
Flash Point	265.5±30.1 °C
Vapour Pressure	0.0±1.4 mmHg at 25°C
Index of Refraction	1.653
LogP	1.82
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	5
Rotatable Bond Count	6
Heavy Atom Count	22
Complexity	423
Defined Atom Stereocenter Count	0

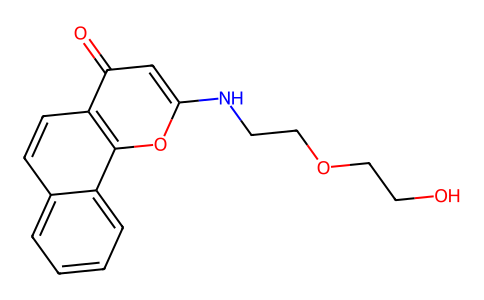

SMILES	O=C1C=C(NCCOCCO)OC2=C1C=CC3=CC=CC=C32
InChi Key	UQJNMNYCRLPGSK-UHFFFAOYSA-N
InChi Code	InChI=1S/C17H17NO4/c19-8-10-21-9-7-18-16-11-15(20)14-6-5-12-3-1-2-4-13(12)17(14)22-16/h1-6,11,18-19H,7-10H2
Chemical Name	2-[2-(2-hydroxyethoxy)ethylamino]benzo[h]chromen-4-one
Synonyms	NU7200; NU 7200; CHEMBL179968; 2-((2-(2-Hydroxyethoxy)ethyl)amino)-4H-benzo[h]chromen-4-one; 2-[2-(2-hydroxyethoxy)ethylamino]benzo[h]chromen-4-one; SCHEMBL13346530; BDBM50159618; 2-[2-(2-Hydroxy-ethoxy)-ethylamino]-benzo[h]chromen-4-one; NU-7200
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	DNA-PK
ln Vitro	In order to confirm the nature of M2 and M3, authentic samples of both NU7199 and NU7200 (Figure 1) were compared to the spectra of the pseudomolecular ions at m/z 300 in plasma and urine. Two peaks were detected at m/z 300 in both plasma and urine and retention times and product ion spectra indicated that M2 corresponds to NU7199 and M3 to NU7200 (data not shown).[1]
References	[1]. Preclinical pharmacokinetics and metabolism of a novel prototype DNA-PK inhibitor NU7026. Br J Cancer. 2005 Oct 31;93(9):1011-8.
Additional Infomation	In this study we investigated the in vitro time dependence of radiosensitisation, pharmacokinetics and metabolism of NU7026, a novel inhibitor of the DNA repair enzyme DNA-dependent protein kinase (DNA-PK). At a dose of 10 muM, which is nontoxic to cells per se, a minimum NU7026 exposure of 4 h in combination with 3 Gy radiation is required for a significant radiosensitisation effect in CH1 human ovarian cancer cells. Following intravenous administration to mice at 5 mg kg(-1), NU7026 underwent rapid plasma clearance (0.108 l h(-1)) and this was largely attributed to extensive metabolism. Bioavailability following interperitoneal (i.p.) and p.o. administration at 20 mg kg(-1) was 20 and 15%, respectively. Investigation of NU7026 metabolism profiles in plasma and urine indicated that the compound undergoes multiple hydroxylations. A glucuronide conjugate of a bis-hydroxylated metabolite represented the major excretion product in urine. Identification of the major oxidation site as C-2 of the morpholine ring was confirmed by the fact that the plasma clearance of NU7107 (an analogue of NU7026 methylated at C-2 and C-6 of the morpholine ring) was four-fold slower than that of NU7026. The pharmacokinetic simulations performed predict that NU7026 will have to be administered four times per day at 100 mg kg(-1) i.p. in order to obtain the drug exposure required for radiosensitisation.[1]

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	3.3409 mL	16.7045 mL	33.4091 mL
	5 mM	0.6682 mL	3.3409 mL	6.6818 mL
	10 mM	0.3341 mL	1.6705 mL	3.3409 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
