NS13001 is a potent, selective, orally bioactive positive allosteric modulator (PAM) of SK channels (small conductance calcium-activated potassium channels). The EC50 of NS13001 for SK2 and SK3 channels are 1.8 μM and 0.14 μM, respectively. NS13001 may be used for studying spinocerebellar ataxia type 2 (SCA2) and other cerebellar ataxias.

Physicochemical Properties

Molecular Formula	C17H16CLN7
Molecular Weight	353.81
Exact Mass	353.116
CAS #	1063331-94-1
PubChem CID	44472568
Appearance	White to light yellow solid powder
LogP	3.635
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	5
Rotatable Bond Count	3
Heavy Atom Count	25
Complexity	458
Defined Atom Stereocenter Count	0
InChi Key	DVQOPNIPUIOXHU-UHFFFAOYSA-N
InChi Code	InChI=1S/C17H16ClN7/c1-10-8-11(2)25(23-10)17-21-15(14-16(22-17)24(3)9-19-14)20-13-6-4-12(18)5-7-13/h4-9H,1-3H3,(H,20,21,22)

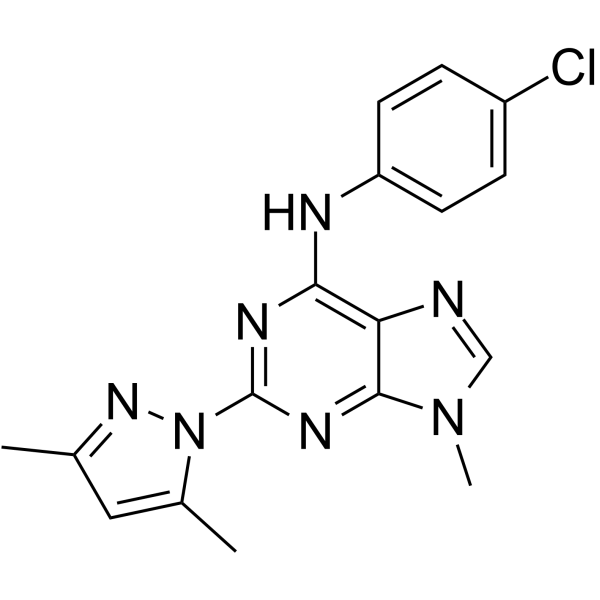

Chemical Name	N-(4-chlorophenyl)-2-(3,5-dimethylpyrazol-1-yl)-9-methylpurin-6-amine
Synonyms	NS-13001; NS 13001; NS13001
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References

[1]. Selective positive modulator of calcium-activated potassium channels exerts beneficial effects in a mouse model of spinocerebellar ataxia type 2. Chem Biol. 2012 Oct 26;19(10):1340-53.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~282.64 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 0.83 mg/mL (2.35 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 8.3 mg/mL clear DMSO stock solution to 400 μL of PEG300 and mix evenly; then add 50 μL of Tween-80 to the above solution and mix evenly; then add 450 μL of normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: 0.83 mg/mL (2.35 mM) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), suspension solution; with ultrasonication. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 8.3 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 0.83 mg/mL (2.35 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 8.3 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.8264 mL	14.1319 mL	28.2638 mL
	5 mM	0.5653 mL	2.8264 mL	5.6528 mL
	10 mM	0.2826 mL	1.4132 mL	2.8264 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
