NQN-1 (PPM-18), a chemically synthesized naphthoquinone derivative and an anti-inflammatory agent, is a novel, potent and cell-permeable and anti-inflammatory agent shown to express inhibitory effects of iNOS through the blocking of NF kappa B activation in vitro. However, experiments have shown that the enzymatic effects of iNOS and eNOS were not directly affected. it also is an histone deacetylase (HDAC) inhibitor. It inhibits the expression of inducible NO synthase (iNOS). NOS catalyzes the oxidation of the amino acid L-arginine to form NO. As an important cellular signaling molecule, NO has been implicated in modulating vascular tone, airway tone, insulinsecretion, and peristalsis. It has also been shown that NO is involved in angiogenesis and neural development and can function as a retrograde neurotransmitter NQN-1 is a histone deacetylases-6 (HDAC6) inhibitor and nuclear factor-κB (NF-κB) activation blocker.

Physicochemical Properties

Molecular Formula	C17H11NO3
Molecular Weight	277.27414
Exact Mass	277.073
CAS #	65240-86-0
PubChem CID	4882
Appearance	Typically exists as solid at room temperature
Density	1.4±0.1 g/cm3
Boiling Point	517.5±50.0 °C at 760 mmHg
Flash Point	208.2±30.3 °C
Vapour Pressure	0.0±1.3 mmHg at 25°C
Index of Refraction	1.667
LogP	2.09
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	3
Rotatable Bond Count	2
Heavy Atom Count	21
Complexity	488
Defined Atom Stereocenter Count	0
SMILES	0
InChi Key	BIVQBWSIGJFXLF-UHFFFAOYSA-N
InChi Code	InChI=1S/C17H11NO3/c19-15-10-14(16(20)13-9-5-4-8-12(13)15)18-17(21)11-6-2-1-3-7-11/h1-10H,(H,18,21)

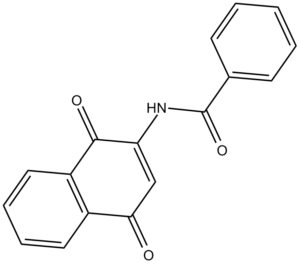

Chemical Name	2-Benzamido- 1,4-naphthoquinone
Synonyms	NQN-1; NQN-1; NQN-1; PPM18; PPM 18; PPM-18
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References	Biochemical Journal, 1997, 328(2): 363-369.
Additional Infomation	PPM-18 is a naphthoquinone.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	3.6066 mL	18.0330 mL	36.0659 mL
	5 mM	0.7213 mL	3.6066 mL	7.2132 mL
	10 mM	0.3607 mL	1.8033 mL	3.6066 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
