NMDAR/TRPM4-IN-2 free base (compound 8) is a potent inhibitor of the NMDAR/TRPM4 interaction interface. NMDAR/TRPM4-IN-2 free base has neuro-protective (neuro-protection) activity. NMDAR/TRPM4-IN-2 free base prevents NMDA-induced cell death and mitochondrial dysfunction in hippocampal neurons with IC50 of 2.1 μM. NMDAR/TRPM4-IN-2 free base protects mice from MCAO-induced brain injury and NMDA-induced retinal ganglion cell loss.

Physicochemical Properties

Molecular Formula	C11H17BRN2
Molecular Weight	257.170081853867
Exact Mass	256.057
CAS #	1353979-43-7
PubChem CID	66568274
Appearance	Colorless to light yellow liquid
Density	1.3±0.1 g/cm3
Boiling Point	300.6±22.0 °C at 760 mmHg
Flash Point	135.6±22.3 °C
Vapour Pressure	0.0±0.6 mmHg at 25°C
Index of Refraction	1.564
LogP	2.4
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	2
Rotatable Bond Count	5
Heavy Atom Count	14
Complexity	152
Defined Atom Stereocenter Count	0

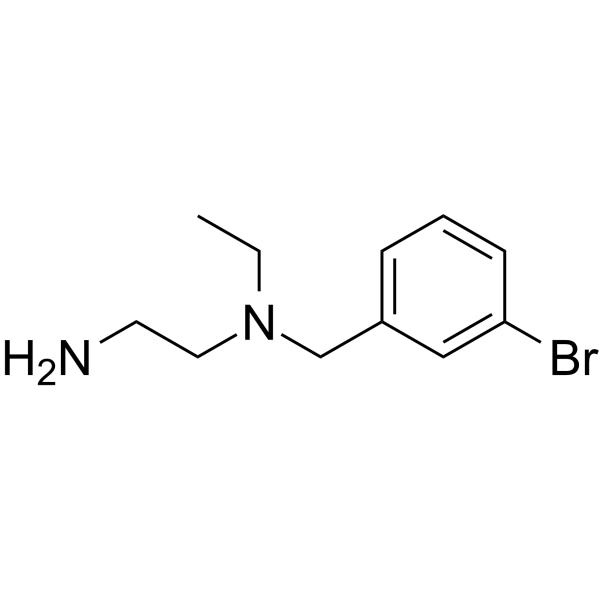

SMILES	BrC1=CC=CC(=C1)CN(CC)CCN
InChi Key	XSMDMHAMGOGFLG-UHFFFAOYSA-N
InChi Code	InChI=1S/C11H17BrN2/c1-2-14(7-6-13)9-10-4-3-5-11(12)8-10/h3-5,8H,2,6-7,9,13H2,1H3
Chemical Name	N'-[(3-bromophenyl)methyl]-N'-ethylethane-1,2-diamine
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	The interaction between GluN2A and GluN2B with TRPM4 is reduced in a dose-dependent manner by NMDAR/TRPM4-IN-2 free base (compound 8) (0-10 μM) [1]. NMDAR/TRPM4-IN-2 free base preserves NMDAR's transcription-promoting activity induced by synaptic activity while blocking the CREB shutdown pathway, ERK1/2 activation, and IEG induction [1].
References	[1]. Coupling of NMDA receptors and TRPM4 guides discovery of unconventional neuroprotectants. Science. 2020 Oct 9;370(6513):eaay3302.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~388.85 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	3.8885 mL	19.4424 mL	38.8848 mL
	5 mM	0.7777 mL	3.8885 mL	7.7770 mL
	10 mM	0.3888 mL	1.9442 mL	3.8885 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
