N-Mal-N-bis(PEG2-NHS ester) is a PROTAC (PROteolysis TArgeting Chimera) linker of the Polyethylene glycol (PEG) category, may be utilized to prepare PROTAC protein degraders.

Physicochemical Properties

Molecular Formula	C29H38N4O15
Molecular Weight	682.629828929901
Exact Mass	682.233
CAS #	2182601-73-4
PubChem CID	129627651
Appearance	Colorless to light yellow liquid（Density：1.44 g/cm3）
LogP	-3.8
Hydrogen Bond Donor Count	0
Hydrogen Bond Acceptor Count	15
Rotatable Bond Count	25
Heavy Atom Count	48
Complexity	1150
Defined Atom Stereocenter Count	0
InChi Key	JIFSJZLGALHIEZ-UHFFFAOYSA-N
InChi Code	InChI=1S/C29H38N4O15/c34-21(7-10-31-22(35)1-2-23(31)36)30(11-15-45-19-17-43-13-8-28(41)47-32-24(37)3-4-25(32)38)12-16-46-20-18-44-14-9-29(42)48-33-26(39)5-6-27(33)40/h1-2H,3-20H2

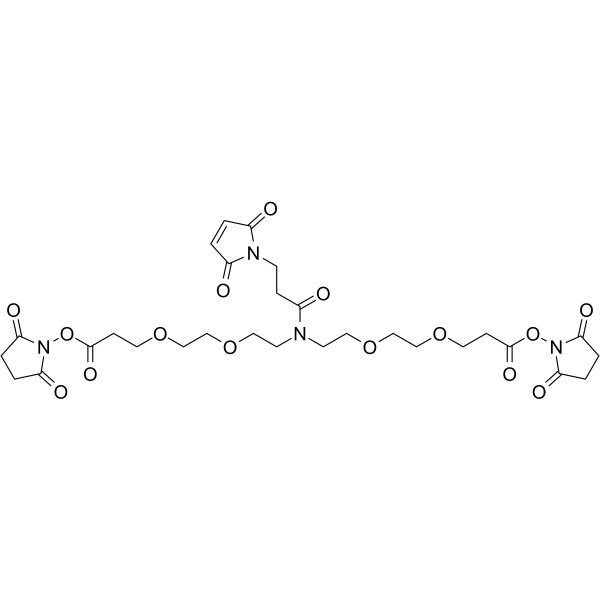

Chemical Name	(2,5-dioxopyrrolidin-1-yl) 3-[2-[2-[2-[2-[3-(2,5-dioxopyrrolidin-1-yl)oxy-3-oxopropoxy]ethoxy]ethyl-[3-(2,5-dioxopyrrol-1-yl)propanoyl]amino]ethoxy]ethoxy]propanoate
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: (1). This product requires protection from light (avoid light exposure) during transportation and storage.(2). Please store this product in a sealed and protected environment (e.g. under nitrogen), avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	One ligand is for an E3 ubiquitin ligase, and the other is for the target protein; these two ligands are joined by a linker to form PROTACs. The intracellular ubiquitin-proteasome system is utilized by PROTACs to specifically destroy target proteins[1].
References	[1]. An S, et al. Small-molecule PROTACs: An emerging and promising approach for the development of targeted therapy drugs. EBioMedicine. 2018 Oct;36:553-562

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~146.49 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (3.66 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (3.66 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.4649 mL	7.3246 mL	14.6492 mL
	5 mM	0.2930 mL	1.4649 mL	2.9298 mL
	10 mM	0.1465 mL	0.7325 mL	1.4649 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
