N-Boc-PEG4-bromide is a PROTAC bridge belonging to the Polyethylene glycol (PEG) category and the Alkyl/ether class. N-Boc-PEG4-bromide may be utilized to prepare a veriety of PROTAC protein degraders. N-Boc-PEG4-bromide is a cleavable ADC bridge used for the synthesis of antibody active molecule conjugates (ADCs).

Physicochemical Properties

Molecular Formula	C13H26BRNO5
Molecular Weight	356.2532
Exact Mass	355.099
CAS #	1076199-21-7
PubChem CID	29974540
Appearance	Colorless to light yellow liquid
Boiling Point	422.1±35.0°C at 3 mmHg
LogP	2.16
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	5
Rotatable Bond Count	13
Heavy Atom Count	20
Complexity	245
Defined Atom Stereocenter Count	0
SMILES	BrC([H])([H])C([H])([H])OC([H])([H])C([H])([H])OC([H])([H])C([H])([H])OC([H])([H])C([H])([H])N([H])C(=O)OC(C([H])([H])[H])(C([H])([H])[H])C([H])([H])[H]
InChi Key	GNDQONYTPMGMTM-UHFFFAOYSA-N
InChi Code	InChI=1S/C13H26BrNO5/c1-13(2,3)20-12(16)15-5-7-18-9-11-19-10-8-17-6-4-14/h4-11H2,1-3H3,(H,15,16)

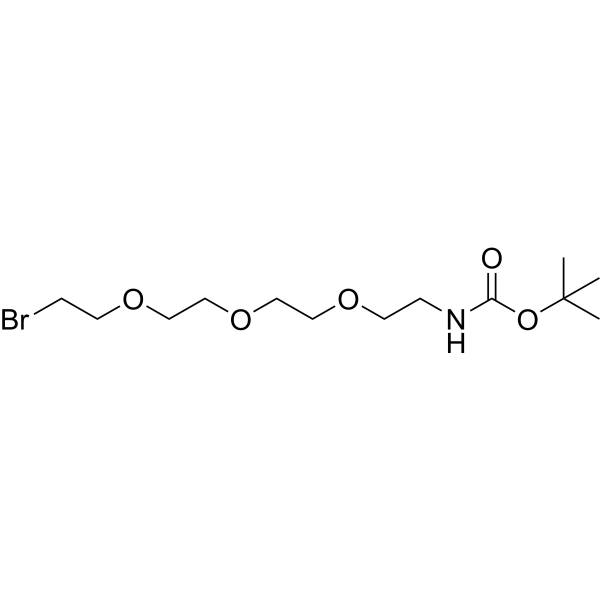

Chemical Name	tert-butyl N-[2-[2-[2-(2-bromoethoxy)ethoxy]ethoxy]ethyl]carbamate
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	Two distinct ligands, one for the E3 ubiquitin ligase and the other for the target protein, are present in PROTAC and are joined by a linker. PROTAC targets and selectively degrades target proteins by means of the intracellular ubiquitin-proteasome system. An ADC cytotoxin is connected to an antibody by use of an ADC linker to form an ADC.
References	[1]. Amatoxin-Conjugates with Improved Linkers. US20130259880A1.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~280.70 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (7.02 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (7.02 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (7.02 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.8070 mL	14.0351 mL	28.0702 mL
	5 mM	0.5614 mL	2.8070 mL	5.6140 mL
	10 mM	0.2807 mL	1.4035 mL	2.8070 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
