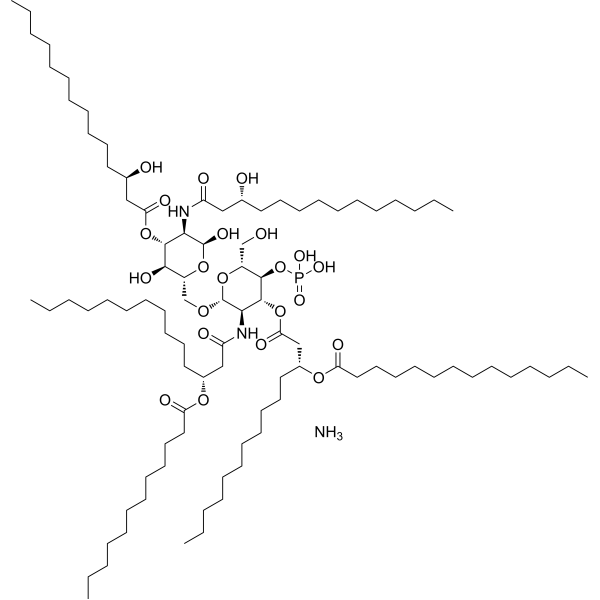

Monophosphoryl Lipid A-12 (MPLA-12) is a biochemical reagent.

Physicochemical Properties

Molecular Formula	C94H180N3O22P
Molecular Weight	1735.42
Exact Mass	1734.279611
CAS #	1332714-01-8
Related CAS #	88598-53-2
PubChem CID	167995930
Appearance	Typically exists as solids at room temperature
Hydrogen Bond Donor Count	10
Hydrogen Bond Acceptor Count	23
Rotatable Bond Count	86
Heavy Atom Count	120
Complexity	2520
Defined Atom Stereocenter Count	14
SMILES	N([C@H]1[C@@H](O[C@H](CO)[C@@H](OP(O)(O)=O)[C@@H]1OC(=O)C[C@@H](CCCCCCCCCCC)OC(=O)CCCCCCCCCCCCC)OC[C@H]1O[C@H](O)[C@H](NC(=O)C[C@H](O)CCCCCCCCCCC)[C@@H](OC(=O)C[C@H](O)CCCCCCCCCCC)[C@@H]1O)C(=O)C[C@@H](CCCCCCCCCCC)OC(=O)CCCCCCCCCCC.N
InChi Key	CYRPJUBABDDIFR-ADEWMWGLSA-N
InChi Code	InChI=1S/C94H177N2O22P.H3N/c1-7-13-19-25-31-37-38-44-50-56-62-68-84(103)113-78(66-60-54-48-42-35-29-23-17-11-5)72-86(105)117-92-88(96-82(101)71-77(65-59-53-47-41-34-28-22-16-10-4)112-83(102)67-61-55-49-43-36-30-24-18-12-6)94(115-79(73-97)90(92)118-119(108,109)110)111-74-80-89(106)91(116-85(104)70-76(99)64-58-52-46-40-33-27-21-15-9-3)87(93(107)114-80)95-81(100)69-75(98)63-57-51-45-39-32-26-20-14-8-2;/h75-80,87-94,97-99,106-107H,7-74H2,1-6H3,(H,95,100)(H,96,101)(H2,108,109,110);1H3/t75-,76-,77-,78-,79-,80-,87-,88-,89-,90-,91-,92-,93+,94-;/m1./s1
Chemical Name	azane;[(2R,3S,4R,5R,6S)-2-[[(2R,3R,4R,5S,6R)-3-[[(3R)-3-dodecanoyloxytetradecanoyl]amino]-6-(hydroxymethyl)-5-phosphonooxy-4-[(3R)-3-tetradecanoyloxytetradecanoyl]oxyoxan-2-yl]oxymethyl]-3,6-dihydroxy-5-[[(3R)-3-hydroxytetradecanoyl]amino]oxan-4-yl] (3R)-3-hydroxytetradecanoate
Synonyms	MPLA-12; 1332714-01-8; alpha-D-Glucopyranose, 2-deoxy-6-O-[2-deoxy-2-[[(3R)-1-oxo-3-[(1-oxododecyl)oxy]tetradecyl]amino]-3-O-[(3R)-1-oxo-3-[(1-oxotetradecyl)oxy]tetradecyl]-4-O-phosphono-beta-D-glucopyranosyl]-2-[[(3R)-3-hydroxy-1-oxotetradecyl]amino]-, 3-[(3R)-3-hydroxytetradecanoate], ammonium salt (1:1); Monophosphoryl Lipid A-12;
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	Toll-like receptor 4/TLR4
References	[1]. Recombination Monophosphoryl Lipid A-Derived Vacosome for the Development of Preventive Cancer Vaccines. ACS Appl Mater Interfaces. 2020;12(40):44554-44562.
Additional Infomation	Recently, there has been an increasing interest for utilizing the host immune system to fight against cancer. Moreover, cancer vaccines, which can stimulate the host immune system to respond to cancer in the long term, are being investigated as a promising approach to induce tumor-specific immunity. In this work, we prepared an effective cancer vaccine (denoted as "vacosome") by reconstructing the cancer cell membrane, monophosphoryl lipid A as a toll-like receptor 4 agonist, and egg phosphatidylcholine. The vacosome triggered and enhanced bone marrow dendritic cell maturation as well as stimulated the antitumor response against breast cancer 4T1 cells in vitro. Furthermore, an immune memory was established in BALB/c mice after three-time preimmunization with the vacosome. After that, the immunized mice showed inhibited tumor growth and prolonged survival period (longer than 50 days). Overall, our results demonstrate that the vacosome can be a potential candidate for clinical translation as a cancer vaccine. [1]

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	0.5762 mL	2.8811 mL	5.7623 mL
	5 mM	0.1152 mL	0.5762 mL	1.1525 mL
	10 mM	0.0576 mL	0.2881 mL	0.5762 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
