Mn(II) protoporphyrin IX is a potential intravenous paramagnetic MRI contrast agent. Mn(II) protoporphyrin IX has strong paramagnetic properties.

Physicochemical Properties

Molecular Formula	C34H32MNN4O4
Molecular Weight	615.58
Exact Mass	615.18
CAS #	21393-64-6
Related CAS #	Mg(II) protoporphyrin IX;14947-11-6;Cu(II) protoporphyrin IX;14494-37-2;Ni(II) protoporphyrin IX;15415-30-2;Ga(III) protoporphyrin IX;222556-71-0;Cr(III) protoporphyrin IX;84640-43-7;Cd(II) protoporphyrin IX;80216-25-7;Pt(II) protoporphyrin IX;98303-94-7
PubChem CID	159910
Appearance	Brown to black solid powder
Boiling Point	1128.5ºC at 760mmHg
Flash Point	636.3ºC
LogP	2.324
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	8
Rotatable Bond Count	6
Heavy Atom Count	43
Complexity	995
Defined Atom Stereocenter Count	0
SMILES	[Mn+2].OC(CCC1=C(C)C2[N-]C1=CC1[N-]C(C=C3N=C(C=C4N=C(C=2)C(C)=C4C=C)C(C)=C3C=C)=C(C)C=1CCC(=O)O)=O
InChi Key	SBXNMKFZHGWYBY-UHFFFAOYSA-L
InChi Code	InChI=1S/C34H34N4O4.Mn/c1-7-21-17(3)25-13-26-19(5)23(9-11-33(39)40)31(37-26)16-32-24(10-12-34(41)42)20(6)28(38-32)15-30-22(8-2)18(4)27(36-30)14-29(21)35-25;/h7-8,13-16H,1-2,9-12H2,3-6H3,(H4,35,36,37,38,39,40,41,42);/q;+2/p-2

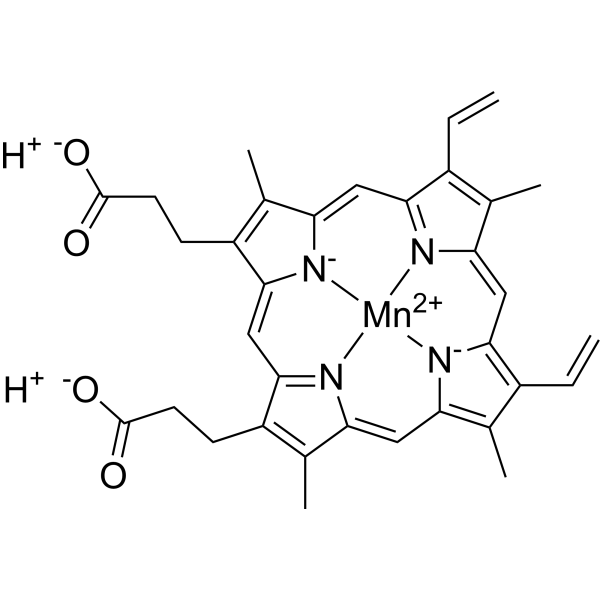

Chemical Name	3-[18-(2-carboxylatoethyl)-8,13-bis(ethenyl)-3,7,12,17-tetramethylporphyrin-21,24-diid-2-yl]propanoate;hydron;manganese(2+)
Synonyms	Manganese protoporphyrin IX; 21393-64-6; Mn Protoporphyrin; Manganese protoporphyrin; 3-[18-(2-carboxylatoethyl)-8,13-bis(ethenyl)-3,7,12,17-tetramethylporphyrin-21,24-diid-2-yl]propanoate;hydron;manganese(2+); Mangano protoporphyrin IX; Manganese-protoporphyrin; NSC 267104;
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	Paramagnetic magnetic resonance contrast agent
ln Vitro	In vitro data show that manganese protoporphyrin IX (Mn PP) maintains strong paramagnetic properties [1].
ln Vivo	Mn(II) protoporphyrin IX induces substantial decrease of T1 in the liver, with less noticeable effects on other bodily tissues[1].
References	[1]. Manganese protoporphyrin IX. A potential intravenous paramagnetic NMR contrast agent: preliminary communication. Invest Radiol. 1985;20(2):226-229.
Additional Infomation	An endogenous, biological chelating substance--protoporphyrin--has been studied in vitro and in vivo for potential usefulness as an MRI contrast agent. In vitro data show that manganese protoporphyrin IX (Mn PP) maintains strong paramagnetic properties. Limited in vivo studies suggest that Mn PP causes marked reduction of T1 in the liver, with less pronounced effects on other body tissues. [1]

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.6245 mL	8.1224 mL	16.2448 mL
	5 mM	0.3249 mL	1.6245 mL	3.2490 mL
	10 mM	0.1624 mL	0.8122 mL	1.6245 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
